1880mm Type Small Toilet Paper Machine Fully Automatic 250m.Min 380V 50Hz

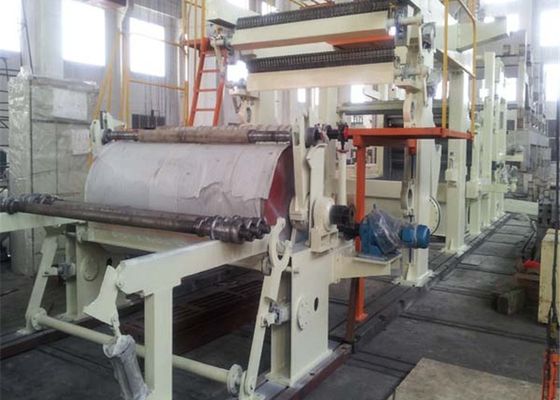

Gambar besar : 1880mm Type Small Toilet Paper Machine Fully Automatic 250m.Min 380V 50Hz

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATAO
Sertifikasi:	SGS,ISO
Nomor model:	HT002

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Kemasan rincian:	Kotak kayu
Waktu pengiriman:	hari kerja 5
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Kontak

Detil Deskripsi produk

Jangka waktu pembayaran:	L / C, T / T	Waktu pengiriman:	dalam 15 hari
Kapasitas nominal:	8-40T / D	kecepatan kerja:	140-400 m / mnt
Kecepatan yang dirancang:	100-450 m / mnt	Lebar kertas bersih:	1880-4600mm
Berat kertas:	13-40g / m2	Kelas kertas:	Kertas toilet / kertas tisu
Menyoroti:	mesin tisu toilet otomatis penuh , mesin tisu toilet kecil 380V , mesin tisu toilet 250m/menit

1880mm Type Small Toilet Paper Machine Fully Automatic 250m.Min 380V 50Hz

Application:

Mainly for the production of manufacture paper with pulp 18 - 30 g / ㎡, toilet paper. Paper napkin base paper

Crafts Parameters:

1. Pulp: wood pulp plate, waste paper etc as raw material

Feeding pulp concentration : 0.3-0.9‰
Beating degrees : 30-38°SR
Paper sheet dryness

come out from wire case : 18-20％

Before go through MG cylinder : 36-40％

Come out from MG cylinder : 90-94％

Finish tissue : 90-94％

Lateral shrinkage : 8-10％
Day running hours: 22 hours/d
Papermaking rate : 94％
Yield : 95％
Touch roll line pressure: 60 KN/m

1880mm Type Small Toilet Paper Machine Fully Automatic 250m.Min 380V 50Hz 0

Supporting parameter

1. AC voltage : 380V；50Hz

Control voltage : 220/24V
Water pressure: 0.3Mpa;

Working pressure: 0.2Mpa

Compressed air pressure: 0.8Mpa;

Working pressure: 0.5Mpa

Steam pressure: 0.6Mpa;

Working pressure:0.3Mpa

Vacuum suction tank: 20-40Kpa
Water requirement: pure color, remove impurities, PH value 6.8

1880mm Type Small Toilet Paper Machine Fully Automatic 250m.Min 380V 50Hz 1

Main Technical Parameters:

1. Paper weight: 18-30g/m2

Net width of paper :3900mm
Designed speed : 230m/min
Working speed: 150-200m/min
Nominal capacity : 10T/D
Track gauge : 4600mm
Wrinkling rate : 15-30℅
Drive way: Y-type AC motor drive division, section drive
Control way:frequency conversion
Power:

MG cylinder motor: 95kw

Roll-cylinder motor: 7.5kw

Total:102.5Kw

1880mm Type Small Toilet Paper Machine Fully Automatic 250m.Min 380V 50Hz 2

Arrangement: single-layer, the left and right hand arrangement

Item / PM type	1575	1880	2400	2900	3500	3900
Design Speed (m/min)	250	250	250	250	250	250
Working Speed (m/min)	160-230	160-230	160-230	160-230	160-230	160-230
GSM Range (g/m2)	13-30	13-30	13-30	13-30	13-30	13-30
Capacity	4-6	5-8	7-10	8-12	10-15	11-18
Diameter of Dryer (mm)	Φ2500-3000	Φ2500-3000	Φ2500-3000	Φ2500-3000	Φ2500-3000	Φ2500-3000
Motor (kw)	37-45	45-55	55-75	75-90	90-110	90-110
Gauge(mm)	2400	2800	3400	3900	4500	4800
