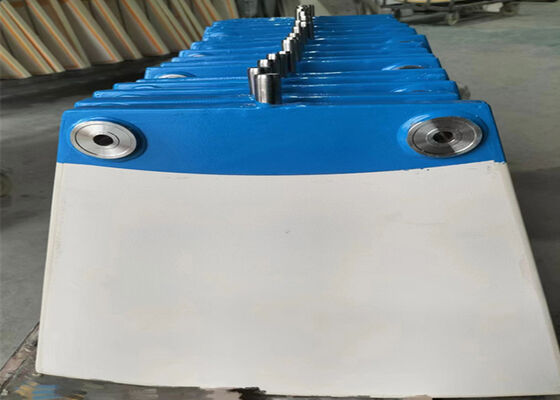

Ceramic Vacuum Filter Plate
Production Description:
Designed for industrial filtration, ceramic filter plates offer high efficiency and long-lasting performance. The microporous structure ensures precise separation and stable operation. Its resistance to harsh conditions enhances its reliability. The plate’s consistent performance improves process efficiency. Its easy maintenance and regeneration extend its usability.
The ceramic filter plate ensures efficient solid-liquid separation through its advanced microporous design. The uniform pore distribution allows for accurate filtration and high throughput. Its resistance to chemical corrosion and mechanical wear enhances its durability. The plate’s stable performance ensures reliable operation. Its long service life reduces maintenance costs.
Ceramic filter plates combine high precision, durability, and efficiency to deliver reliable filtration solutions. The microporous structure ensures effective separation of solids and liquids. Its resistance to wear and corrosion allows for long-term operation. The plate maintains consistent performance under varying conditions. Its extended service life and low maintenance requirements make it an ideal choice for industrial filtration applications.
High Efficiency Ceramic Vacuum Filter Plate for Mining Dewatering Systems
Ceramic vacuum filter plates are core components used in ceramic disc vacuum filters for solid-liquid separation and mineral concentrate dewatering. Designed with microporous ceramic technology, these filter plates provide excellent filtration efficiency, low moisture cake discharge, and long service life in harsh mining and industrial environments. They are widely used in iron ore, gold, copper, zinc, lead, coal, tailings treatment, chemical processing, and wastewater filtration systems. Vacuum ceramic filters are commonly applied in ore beneficiation plants because they offer low energy consumption, high filtrate clarity, and reduced operational costs.
Product Introduction

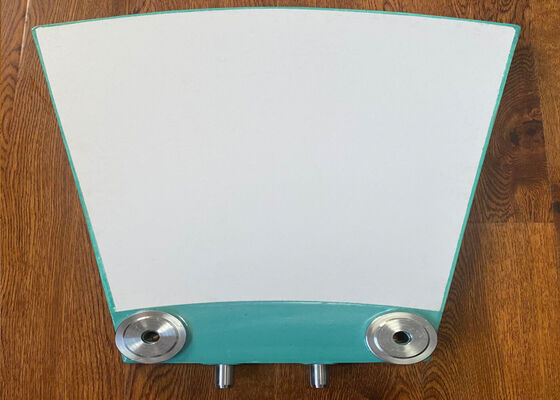

The ceramic vacuum filter plate is manufactured from high-purity alumina ceramic materials with uniform microporous structures. Through capillary action and vacuum pressure, the ceramic plates efficiently separate liquid from slurry while minimizing air consumption. Compared with traditional filter cloth systems, ceramic filter plates provide higher filtration precision, lower moisture content, faster dewatering speed, and longer operational life.
The microporous ceramic structure allows only liquid and air to pass through while retaining ultra-fine particles on the surface, ensuring excellent filtrate clarity and stable cake formation. The plates feature strong corrosion resistance, abrasion resistance, and high mechanical strength, making them ideal for continuous heavy-duty mining operations.
Main Applications
Mining Industry
- Iron ore concentrate dewatering
- Gold concentrate filtration
- Copper concentrate separation
- Zinc and lead ore processing
- Coal washing plants
- Tailings dewatering systems
- Rare earth mineral processing
Chemical Industry
- Chemical slurry filtration
- Catalyst recovery
- Fine chemical separation
Environmental Protection
- Industrial wastewater treatment
- Sludge dewatering
- Recycling filtration systems
Metallurgical Industry
- Concentrate drying systems
- Smelting feed preparation
- Fine particle recovery
Product Advantages
1. Ultra-Low Moisture Content
The ceramic vacuum filter plate can significantly reduce final cake moisture, improving downstream handling and transportation efficiency.
2. Energy Saving Operation
Microporous ceramic filtration reduces vacuum pump load and air consumption, lowering overall power usage compared with traditional vacuum filters.
3. High Filtration Precision
Uniform micropores effectively retain ultra-fine particles while maintaining high filtrate clarity.
4. Excellent Wear Resistance
High-density alumina ceramic material provides outstanding abrasion resistance for long-term mining applications.
5. Corrosion Resistance
Suitable for acidic, alkaline, and corrosive slurry environments.
6. Long Service Life
Compared with filter cloth systems, ceramic plates offer longer operational cycles and reduced maintenance frequency.
7. Easy Cleaning and Regeneration
The ceramic structure supports acid cleaning, ultrasonic cleaning, and backwashing regeneration systems.
8. Stable Continuous Operation
Suitable for 24-hour automatic dewatering systems in large-scale beneficiation plants.
Working Principle

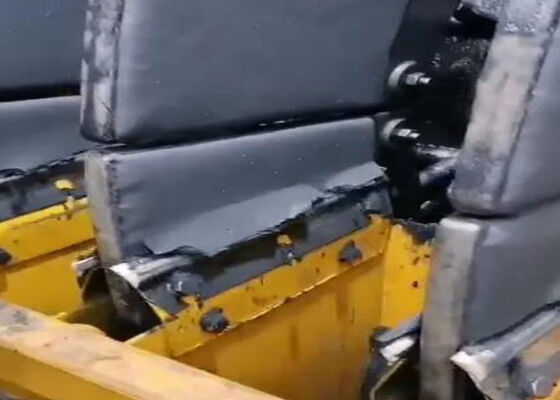

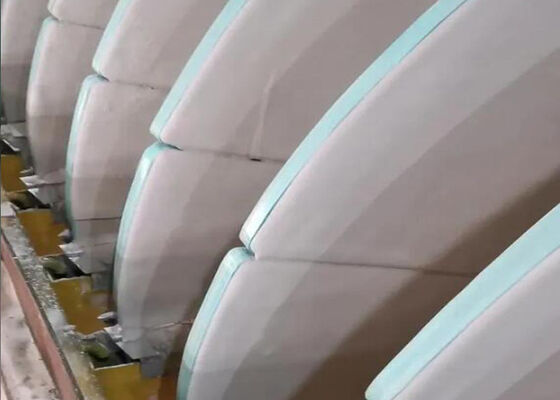

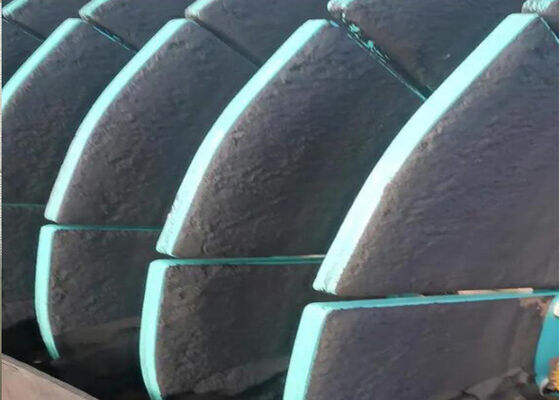

The ceramic filter plates rotate partially submerged in slurry tanks. Under vacuum pressure, capillary action inside the ceramic micropores draws liquid through the plate while solids remain on the surface to form a filter cake. After cake formation and dewatering, the dried material is discharged by scraper systems, and the plates are cleaned automatically for continuous operation.
Technical Specifications
| Item |
Specification |
| Product Name |
Ceramic Vacuum Filter Plate |
| Material |
High Purity Alumina Ceramic |
| Structure |
Microporous Ceramic |
| Filtration Type |
Vacuum Dewatering |
| Pore Size |
1-5 μm |
| Plate Diameter |
Customized |
| Plate Thickness |
Customized |
| Operating Pressure |
0.90–0.95 bar |
| Filtration Capacity |
200–5000 L/m²/h |
| Moisture Reduction |
Excellent |
| Temperature Resistance |
High |
| Corrosion Resistance |
Excellent |
| Abrasion Resistance |
Excellent |
| Application |
Mining Concentrate Dewatering |
| Installation Type |
Ceramic Disc Filter System |
| Cleaning Method |
Acid Cleaning / Ultrasonic Cleaning |
| OEM Service |
Available |
Q=frac{V}{Atimes t}
Where:
- (Q) = Filtration rate
- (V) = Filtrate volume
- (A) = Filtration area
- (t) = Filtration time
Available Types
Cast Ceramic Filter Plate
- One-piece ceramic construction
- High mechanical strength
- Long wear life
Membrane Ceramic Filter Plate
- Multi-layer porous structure
- Higher filtration precision
- Better moisture reduction performance
Features
- Microporous ceramic filtration technology
- High vacuum efficiency
- Low energy consumption
- High throughput capacity
- Stable cake formation
- Low maintenance requirements
- Excellent filtrate clarity
- Continuous automatic operation
- Strong chemical stability
- Long replacement cycle
Compatible Equipment

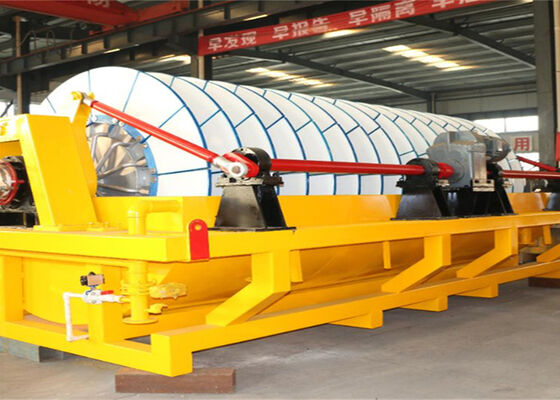

- Ceramic disc vacuum filters
- Rotary vacuum filters
- Mineral concentrate dewatering systems
- Tailings filtration equipment
- Beneficiation plant filtration units
Packaging & Delivery
Packaging
- Wooden case export packing
- Anti-collision protection
- Moisture-proof packaging
Delivery Time
- Standard size: 7–15 working days
- Customized size: 15–25 working days
Shipping
- Sea freight
- Air freight
- Railway transportation
RFQ (Request For Quotation)
Q1: What information is required for quotation?
Please provide:
- Filter model
- Plate dimensions
- Slurry type
- Particle size
- Capacity requirement
- Operating conditions
Q2: Can you provide customized ceramic filter plates?
Yes. OEM and customized sizes are available according to customer drawings or technical requirements.
Q3: What industries are your ceramic filter plates suitable for?
Our products are widely used in mining, metallurgy, coal washing, chemical processing, and wastewater treatment industries.
Q4: How long is the service life?
Service life depends on slurry abrasiveness and operating conditions, but ceramic plates generally last much longer than traditional filter cloth systems.
Q5: Do you provide technical support?
Yes. We provide installation guidance, technical consultation, and after-sales support.
Why Choose Us
- Professional mining filtration manufacturer
- OEM & customized production
- Strict quality inspection
- Stable supply capability
- Rich export experience
- Competitive factory pricing
- Fast delivery service
- Technical support for beneficiation plants
