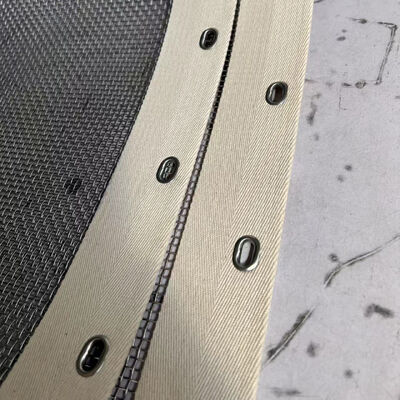

Stainless Steel Grommet Screen with 14-230 Mesh for High Wear Resistance in Megatex Screeners

Gambar besar : Stainless Steel Grommet Screen with 14-230 Mesh for High Wear Resistance in Megatex Screeners

Detail produk:

Tempat asal:	Cina
Nama merek:	CHINA HUATAO
Sertifikasi:	ISO9001,CE,SGS etc.
Nomor model:	HT

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	USD 100-200 per pcs
Kemasan rincian:	Kotak Kayu atau Kotak Karton
Waktu pengiriman:	5-8 HARI KERJA
Syarat-syarat pembayaran:	L/C,T/T,Western Union,Paypal
Menyediakan kemampuan:	100PCS/BULAN

Kontak

Detil Deskripsi produk

Bahan jaring:

Baja tahan karat 304, 304L, 316, 316L

Menyoroti:

Stainless steel grommet screen for Megatex

Rotex replacement screen with hook

Megatex screener grommet screen

Stainless Steel Grommet Screen for Megatex Screeners 14-230 Mesh

Product Overview

Stainless Steel Grommet Screen with Hook for Megatex Screeners

Replacement Grommet Screen with Stainless Steel Hook for Megatex Screeners

HUATAO's grommet screens are designed for Rotex® separators, providing an excellent replacement solution for mineral screening operations. These wire screens feature reinforced edges with either PU strips or 180-degree folded mesh, secured with stainless steel grommets for durability and easy installation.

Our rectangular mesh design offers up to 30% larger open screening area compared to standard meshes, improving material throughput without compromising screen life. Available for all common cut sizes, these screens adapt to both coarse and fine mineral separation needs.

For Megatex® screeners, we include a stainless steel hook on one side for perfect fitment. Manufactured from high-grade stainless steel, our grommet screens withstand demanding mining environments while maintaining screening efficiency.

Key Parameters

Parameter	Specification
Mesh Material	Stainless Steel 304, 304L, 316, 316L
Edge material	Generally reinforced strips are made of PU, canvas, silica gel, etc.
Mesh type	woven mesh
Mesh count	14-230
Wire diameter	0.0014-0.0090 inch
Open area	46.0%-76.4%

Detailed Specifications

Item	Mesh Size	Wire Size (in.)	Microns	Open Area %
1	14	0.009	1580	76.4
2	16	0.009	1360	73.3
3	18	0.009	1180	70.2
41	230	0.0014	74	46

Edge Type Options

Black PU-Strip Grommet Screen

Transparent PU-Strip Grommet Screen

180° Folded Edge Grommet Screen

Production Process

Packaging & Logistics

Wooden box package for secure shipping and handling.

Applications
