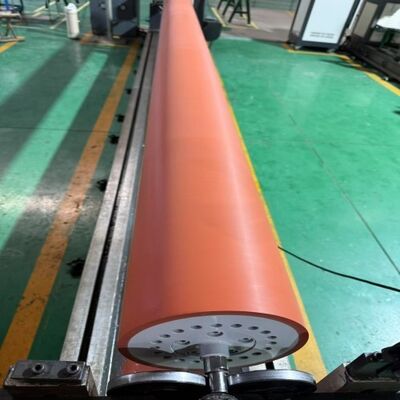

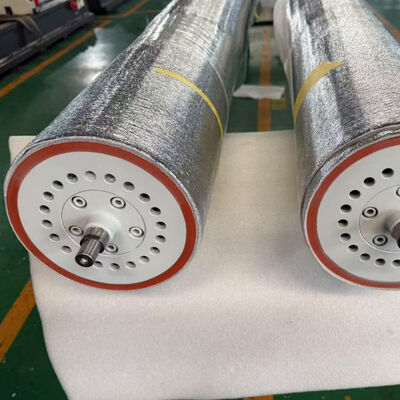

T800 Material Carbon Fiber Slitting Roller for BOPP or BOPET Film Slitting Equipment

Gambar besar : T800 Material Carbon Fiber Slitting Roller for BOPP or BOPET Film Slitting Equipment

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATAO
Sertifikasi:	ISO9001
Nomor model:	Ht-cfsr-1

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	2000USD/pc-5000USD/pc
Kemasan rincian:	kotak kayu
Waktu pengiriman:	45 hari
Syarat-syarat pembayaran:	L/C,T/T,Western Union
Menyediakan kemampuan:	100PCS/BULAN

Kontak

Detil Deskripsi produk

Nama:

Bopp atau bopet rol celah serat karbon yang digunakan untuk peralatan celah film

Kata Kunci:

Bopp Atau Bopet Carbon Fiber Slitting Roller, Carbon Fiber Slitting Roller Digunakan Untuk Peralatan

Bahan:

Fungsi permukaan::

desain knalpot halus atau berlubang

Menyoroti:

Rol pemotong serat karbon

Bopp Film Slitting Roller

Rol peralatan film BOPET

BOPP or BOPET Carbon Fiber Slitting Roller for Film Slitting Equipment

Our advanced carbon fiber rubber rollers utilize a proprietary manufacturing process that maximizes the benefits of carbon fiber technology. These high-performance rollers achieve speeds and performance characteristics unattainable with traditional steel cores. Designed specifically for the OPP, CPP film industry and high-speed printing applications, our rollers combine large-scale construction with lightweight durability.

Key Features

Easy replacement and reliable operation
Exceptional durability and cost-effectiveness
Manufactured from high-performance carbon fiber composite (90% carbon content)
High axial strength and modulus with minimal thermal expansion
Superior fatigue resistance with stable performance characteristics

Applications

Ideal for PE, PP, PET, BOPP, and BOPET film slitting equipment (winding rollers)

Technical Parameters

Roller material	High-performance carbon fiber composite material
Composite shaft head connection	Durable and reliable (patented technology)
Weight	30kg, composite material density 1600kg/m³
Surface coating	EPDM or other rubber coating
Maximum diameter	Custom designs up to 190mm
Surface roughness	Ra0.8um
Maximum length	Custom designs up to 4000mm
Surface hardness	Shore A60-90
High stiffness	700N/m, deflection deformation 0.01mm/m
Rubber coating thickness	5-10mm
Speed	Linear speed 1500m/min or custom designs >5000r/min
Surface function	Smooth or slotted exhaust design options

Carbon Fiber Material Advantages

Tensile strength: Approximately 10 times stronger than steel
Elastic modulus: Superior to steel with minimal deformation
Fatigue strength: 70-80% of static load strength with visible deformation warnings
Weight: Only 20% of equivalent steel components
Specific strength: 20 times greater than steel cores
Speed capability: More than double the operational speed of steel rollers

Standard Specifications

Contact roller: 250*L5400mm (Total weight: 125KG)

CommScope split roller: Outer diameters 130mm, 115mm, 88mm (Various lengths)

Atlas slitting machine roller: Outer diameter 180mm (Various lengths) with slotted surface design
