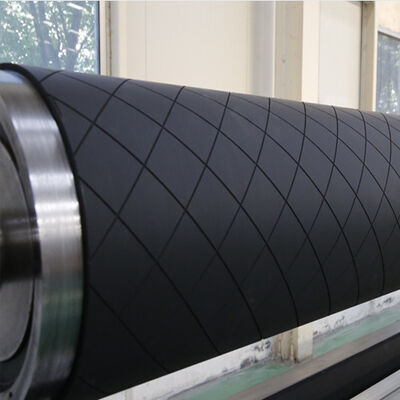

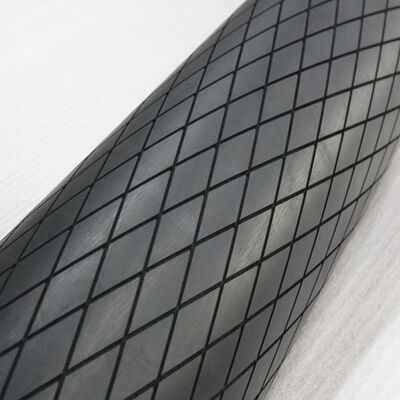

High-Speed Carbon Fiber Guide Roller for Bopp And Bopet with Shore A70 Hardness and Ra0.8um Surface

Gambar besar : High-Speed Carbon Fiber Guide Roller for Bopp And Bopet with Shore A70 Hardness and Ra0.8um Surface

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATAO
Sertifikasi:	ISO9001
Nomor model:	HUATAO-CFR-2

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	2000USD/pc-5000USD/pc
Kemasan rincian:	kotak kayu
Waktu pengiriman:	45 hari
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	100PCS/BULAN

Kontak

Detil Deskripsi produk

Nama:

Peralatan Produksi Film Berkecepatan Tinggi Carbon Fiber Roller Bopp Dan Bopet

Kata Kunci:

Roller Serat Karbon, Peralatan Produksi Film Berkecepatan Tinggi Roller Serat Karbon, Roller Serat K

Kekerasan permukaan::

Pantai A70

Kekasaran Permukaan:

Ra0.8um

Menyoroti:

Roller Pemandu Serat Karbon Kecepatan Tinggi

Roller Pemandu BOPP BOPET dengan Shore A70

Roller Industri dengan Permukaan Ra0.8um

constituent

High Speed Film Production Equipment Carbon Fiber Guide Roller Bopp And Bopet

Carbon fiber rollers designed for PE, PP, PET, BOPP, and BOPET production lines. Offering ten times the strength of iron at one-fourth the weight.

Product Specifications

以西 Shell Material evo gentil fulBearing housing in QT500-7/ZG wards35/Stainless steel
Grease/thin oil lubrication
Rubber cover/Chromed plating/RCC

Component	Specification
Carbon fiber
Bulkhead Material	HT250 or Aluminium
Journal Material	42CrMo or Forvert Forged 42CrMo
Optional Features
Supply Limits	Max Diameter: 1000mmruction Max Face length: 14000mm Max Balancing speed: 2500m/min With Center dynamic deflection testing

">Key-calECHO">Key Advantages

L ballsLighter weight: Improved safety during roller replacement operations
Lower inertia: Reduces running costs and enables stable transport with thin materials
Low deflection: Enhances product quality dime quality through stable base material transport
High rpm capability: Increases productivity while maintaining rotational control

Technical Parameters

osten

Surface Roughness	Ra0.8um
Rubber Coating Thickness	15mm (customizable 5-30mm)
Surface Function	Diamond/spiral groove, exhaust designACI design
Rigidity	500N/m, deflection deformation 0.1mm/m (customizable)
Surface Hardness	Shore A70
Speed	Linear speed 600m/min (designs available for >2800r/min)

About Huatao Group

Founded in 2008, Huatao Group is a leading supplier of industrialrid= rollers for paper, corrugnesh corrugated board, rubber/plastic, and nonwoven fabric industries with 15+ years of experience.

Key Product Lines:

Paper Industry: forming rollers, vacuum couch rollers, press rollers, dryer cylinders
Plastic & Rubber: chill rollers, MDO rollers, corona treatment rollers, carbon fiber rollers
Nonwoven Fabric: cylinder rollers, embossing rollers, cooling rollers

Our products are exported to 96+ countries, backed by our commitment to innovation and customer satisfaction. We specialize in custom solutions that match your specific production requirements.
