Double-channel Large Diameter Casting Cooling Roller with HRC65 Hardness and Low Energy Consumption

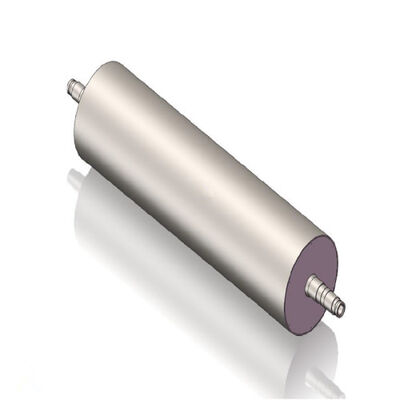

Gambar besar : Double-channel Large Diameter Casting Cooling Roller with HRC65 Hardness and Low Energy Consumption

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATAO
Sertifikasi:	ISO
Nomor model:	Casting roller pendingin

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	2000USD/pc-5000USD/pc
Kemasan rincian:	kotak kayu
Waktu pengiriman:	5-8 minggu
Syarat-syarat pembayaran:	L/C,T/T,Western Union
Menyediakan kemampuan:	100 PC/bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Rol Pendingin Pengecoran Diameter Besar Saluran Ganda Konsumsi Energi Rendah	Kata Kunci:	Pengecoran Rol Pendingin, Rol Pendingin, Rol Pengecoran
Ketebalan perawatan pelapisan keras:	0,1 mm	Kekerasan perawatan pelapisan keras:	HRC65
Kekasaran permukaan rol matte:	Ra≈0.4	Konsentrisitet:	≤0,03~0,05
Tekanan kerja:	≥0,4Mpa	Jaminan:	1 Tahun
Menyoroti:	Roller industri saluran ganda dengan kekerasan HRC65 , Roller Pendingin Pengecoran Diameter Besar , Roller industri konsumsi energi rendah

Double Channel Large Diameter Casting Cooling Roller HRC65 Low Energy Consumption

Product Overview

The double-channel large-diameter cast cooling roller features an innovative design with reduced flow resistance and improved cooling efficiency. Its optimized structure ensures uniform water distribution, enhanced temperature control, and significant energy savings.

Key Features

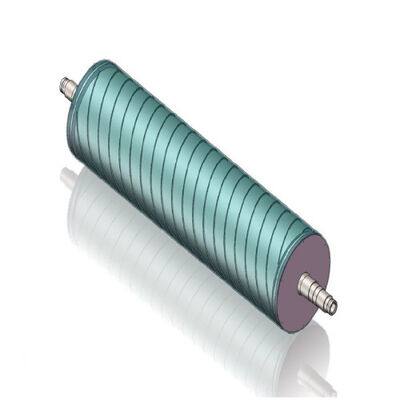

Double-channel spiral guide plate design for optimal water flow
Precision-engineered roller surface with HRC65 hardness
Reduced internal flow resistance for improved efficiency
Uniform cooling water distribution system
Energy-saving operation with lower consumption

Technical Specifications

Parameter	Specification
Hard plating thickness	0.1mm
Surface hardness	HRC65
Surface roughness	Ra≈0.4
Concentricity	≤0.03~0.05
Cylindricity	≤0.03~0.05
Surface runout	≤0.03~0.05
Dynamic balancing	G6.3 level (≤500g imbalance)
Working pressure	≥0.4MPa

Design Advantages

The roller features a sandwich multi-channel structure with right-handed channels. The active end serves as the water inlet, with all components undergoing rigorous 1MPa water pressure testing for 30 minutes to ensure leak-proof performance. The precision-engineered spiral guide plates create optimal water flow paths for maximum cooling efficiency.

About Huatao Group

Founded in 2008, Huatao Group is a leading manufacturer of industrial rollers with over 15 years of experience. We specialize in high-quality rollers for:

Paper Industry: Forming rollers, vacuum couch rollers, dryer cylinders
Plastic & Rubber: Chill rollers, cooling rollers, corona treatment rollers
Nonwoven Fabric: Cylinder rollers, embossing rollers, spreader rollers

Our products are exported to 96+ countries, backed by our commitment to innovation and customer satisfaction. We offer customized solutions to meet specific industrial requirements, ensuring superior performance and reliability.
