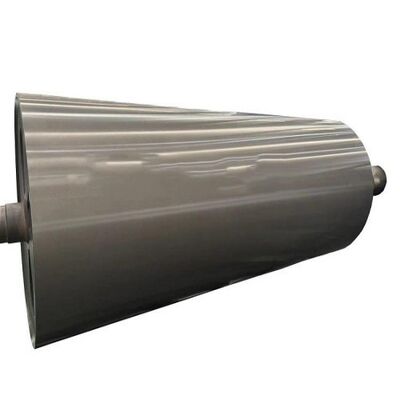

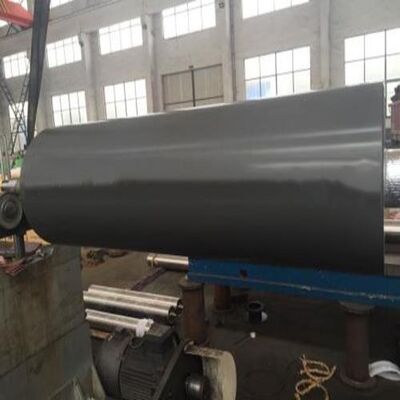

Anti-stick MDO Preheating Roller with Teflon Coating and Q345 Material for Heat Resistance up to 260°C

Gambar besar : Anti-stick MDO Preheating Roller with Teflon Coating and Q345 Material for Heat Resistance up to 260°C

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATAO
Sertifikasi:	ISO
Nomor model:	Roll pre-heating

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	2000USD/pc-5000USD/pc
Kemasan rincian:	kotak kayu
Waktu pengiriman:	5-8 minggu
Syarat-syarat pembayaran:	L/C,T/T,Western Union
Menyediakan kemampuan:	100 PC/bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Anti-stick Pre-Heating Roller Dengan Pelapis Teflon yang Disesuaikan	Kata Kunci:	Gulungan Pemanas, Gulungan Pra-pemanasan, Gulungan Pra-pemanasan Teflon
Konstruksi Cangkang:	Konstruksi cangkang ganda dari Q345	Sistem Aliran:	satu arah masuk dan keluar, saluran antara tabung dalam dan luar dipisahkan dengan spiral pengelasan
Konstruksi cakram / poros:	Poros dan cakram samping yang diperkecil dan dilas dari Q345	Lapisan:	Keramik, keramik teflon, karbida tungsten
Suhu:	Hingga 260°C	Kekasaran:	7-10 RZ
Menyoroti:	Teflon dilapisi MDO preheating roller , Rol industri tahan panas , Rol bahan anti lengket Q345

Anti Stick Pre Heating Roller With Customized Teflon Coating

Product Description

The MDO Preheating Roller is a critical component in the MDO unidirectional stretching production line. It heats plastic film to optimize physical property changes during longitudinal stretching, enhancing the film's mechanical properties and transparency. This heating process improves tensile strength, stiffness, durability, and stability while significantly increasing transparency and gloss for greater commercial value. Additionally, it enhances heat sealing performance, printing quality, and overall product processability.

Key Features

Non-stick properties: Teflon coating prevents adhesion of virtually all substances, even with very thin films.
Heat resistance: Withstands temperatures up to 300°C briefly and operates continuously between 240°C-260°C. Maintains stability across extreme temperatures without brittleness or melting.
Abrasion resistance: Low friction coefficient (0.05-0.15) that remains stable under varying loads.
Chemical resistance: Nearly impervious to chemical corrosion, protecting components from chemical damage.

Applications

Rubber & plastic industry, textile manufacturing, paper production, food processing, chemical processing, and P/C/B electronic electroplating industries.

Technical Specifications

Specification	Details
Shell construction	Double-shell construction from Q345
Flow-system	One way enter and exit, channels between inner and outer tube separated with welded leading Spirals
Disc/Shaft construction	Shrinked and welded shafts and side discs from Q345
Coating	Hard chrome, teflon, ceramic, tungsten carbide
Balancing	Grade 2.5
Roughness	7-10 Rz
Temperature	Up to 260°C

About Huatao Group

Founded in 2008, Huatao Group is a leading supplier of industrial rollers with over 15 years of experience serving the paper, corrugated board, rubber & plastic, and nonwoven fabric industries. Our products are exported to 96+ countries with an excellent reputation for quality and reliability.

Industry Specializations

Paper Industry: Forming rollers, vacuum couch rollers, dandy rollers, press rollers, dryer cylinders, calender rollers
Plastic & Rubber: Chill rollers, MDO rollers, cooling rollers, corona treatment rollers, coating drums
Nonwoven Fabric: Cylinder rollers, doffer rollers, carbon fiber guide rollers, embossing rollers

We understand each customer's unique requirements and match them with optimal solutions from our network of quality manufacturers. Our commitment ensures customers purchase and use Huatao products with confidence, backed by ongoing support.
