MDO Teflon Coated Pre-heating Roller with Q345 Material and Double-shell Construction for High Temperature Resistance

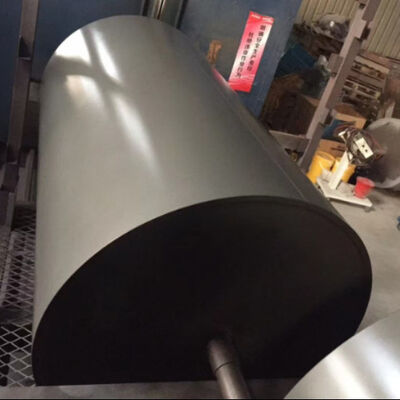

Gambar besar : MDO Teflon Coated Pre-heating Roller with Q345 Material and Double-shell Construction for High Temperature Resistance

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATAO
Sertifikasi:	ISO
Nomor model:	Mdo gulungan pemanas berlapis mdo teflon

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	2000USD/pc-5000USD/pc
Kemasan rincian:	kotak kayu
Waktu pengiriman:	5-8 minggu
Syarat-syarat pembayaran:	L/C,T/T,Western Union
Menyediakan kemampuan:	100 buah/tahun

Kontak

Detil Deskripsi produk

Nama Produk:	MDO Teflon Dilapisi Rol Pra-pemanasan Tahan Suhu Tinggi	Kata Kunci:	Gulungan Pemanas, Gulungan Pra-pemanasan, Gulungan Pra-pemanasan Teflon
Konstruksi Cangkang:	Konstruksi cangkang ganda dari Q345	Sistem Aliran:	satu arah masuk dan keluar, saluran antara tabung dalam dan luar dipisahkan dengan spiral pengelasan
Konstruksi cakram / poros:	Poros dan cakram samping yang diperkecil dan dilas dari Q345	Lapisan:	Keramik, keramik teflon, karbida tungsten
Kekasaran:	7-10 RZ	Suhu:	Hingga 260°C
Menyoroti:	Roller industri berlapis Teflon MDO , Bahan Q345 Preheating Roller , Roller suhu tinggi cangkang ganda

MDO Teflon Coated Pre-heating Roller High Temperature Resistant

Product Description

The MDO Preheating Roller is a critical component in MDO unidirectional stretching production lines. It heats plastic film to optimize physical property changes during longitudinal stretching, enhancing mechanical properties and transparency. This process improves tensile strength, stiffness, durability, and stability while significantly increasing film transparency and gloss for greater commercial value. Additionally, it enhances heat sealing performance, printability, processing efficiency, and product usability.

During operation, the roller heats film through internal flow channels to achieve optimal temperature for maximum physical and mechanical property enhancement during stretching. This integrated heating and stretching process enables efficient production of high-performance plastic films for diverse industrial applications.

Technical Specifications

Feature	Specification
Shell construction	Double-shell construction from Q345
Flow-system	One way enter/exit, channels between inner/outer tube separated with welded leading Spirals
Disc/Shaft construction	Shrinked and welded shafts and side discs from Q345
Coating	Hard chrome, teflon, ceramic, tungsten carbide
Balancing	Grade 2.5
Roughness	7-10 Rz
Temperature	up to 260º C

About Huatao Group

Founded in 2008, Huatao Group is a leading supplier of industrial rollers with over 15 years of experience serving paper, corrugated board, rubber, plastic, and nonwoven fabric industries. Our products are exported to 96+ countries with excellent reputation.

Industry Specializations

Paper Industry: Forming rollers, vacuum couch rollers, dryer cylinders, calender rollers
Plastic & Rubber: MDO rollers, chill rollers, corona treatment rollers, carbon fiber rollers
Nonwoven Fabric: Cylinder rollers, doffer rollers, embossing rollers, cooling rollers

Committed to innovation and customer satisfaction, we match each client's unique requirements with optimal solutions from our network of quality manufacturers. Our philosophy ensures customers purchase and use Huatao products with complete confidence.
