Anti-stick High Friction Coating Carbon Fiber Contact Roll with Runout 0.1mm Cylindricality 0.1mm and Dynamic Balance G2.5 Level

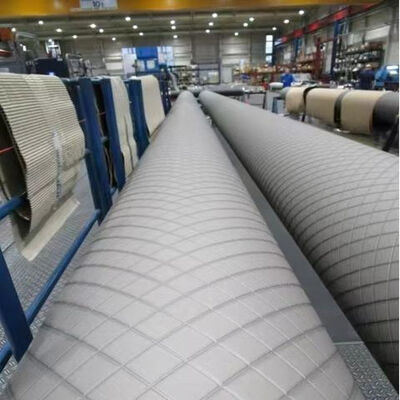

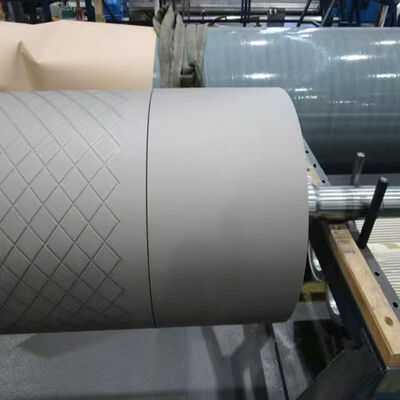

Gambar besar : Anti-stick High Friction Coating Carbon Fiber Contact Roll with Runout 0.1mm Cylindricality 0.1mm and Dynamic Balance G2.5 Level

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATAO
Sertifikasi:	ISO
Nomor model:	Rol CFRP

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	2000USD/pc-5000USD/pc
Kemasan rincian:	kotak kayu
Waktu pengiriman:	5-8 minggu
Syarat-syarat pembayaran:	L/C, Western Union, T/T
Menyediakan kemampuan:	100 pc/tahun

Kontak

Detil Deskripsi produk

Nama Produk:	Anti-stick High Friction Coating Carbon Fiber Contact Roll yang digunakan untuk BOPP Capacitor Film	Kata Kunci:	Gulungan serat karbon, rol kontak, rol CFRP, rol polimer yang diperkuat serat karbon
Penyediaan khusus:	Panjang wajah maks 11000mm ， kecepatan garis maks 600m/mnt	Permukaan:	Menurut pilihan pelanggan apakah akan groove
Lapisan permukaan:	EPDM	Keluar:	0,1 mm
silindris:	0,1 mm	Keseimbangan Dinamis:	Level G2.5
Menyoroti:	Rol industri serat karbon , roller pelapis gesekan tinggi , G2.5 rol dynamic balance

Anti Stick High Friction Coating Carbon Fiber Contact Roll For BOPP Capacitor Film

Product Description

Anti-stick High Friction Coating Carbon Fiber Contact Roll used for PE, PP, PET, BOPP, BOPET production line. This roll has about ten times the strength of iron, while its specific weight is about one-fourth that of iron.

Technical Specifications

Feature	Specification
Roll body	Carbon Fiber
Special supplying	Face length max 11000mm Line speed max 600m/min
Surface	According to customer's choice whether to groove
Static and dynamic parameters and tolerances	Runout 0.10mm, cylindricality 0.10mm (excluding crown) Dynamic balance G2.5 level

Product Advantages

Lightweight: Density of only 1.6-1.7g/cm³, more than 70% lighter than steel rollers, reducing inertia during high-speed operation and decreasing energy consumption by 110%.
High strength & high modulus: Tensile strength reaches 4900MPa, with elastic modulus of 240GPa, suitable for high-speed production lines (above 600m/min).
Corrosion resistance: Avoids oxidation problems of metal rollers in humid or chemical environments, extending service life.
High dynamic balancing accuracy: Roller body runout controlled within 0.03mm to ensure uniformity of capacitor film thickness.

About Huatao Group

Founded in 2008, Huatao Group is a professional supplier of various rollers for paper, corrugated board, rubber & plastic, and nonwoven fabric industries with over 15 years of experience.

Industry Applications

Paper Industry: Forming rollers, vacuum couch rollers, dandy rollers, press rollers, dryer cylinders, and more.

Plastic & Rubber: Chill rollers, MDO rollers, corona treatment rollers, carbon fiber rollers, and coating drums.

Nonwoven Fabric: Cylinder rollers, doffer rollers, embossing rollers, and cooling rollers.

With products exported to over 96 countries, Huatao Group is committed to innovation, reliability, and customer satisfaction. We understand unique customer requirements and match them with superior quality products from our network of domestic factories.
