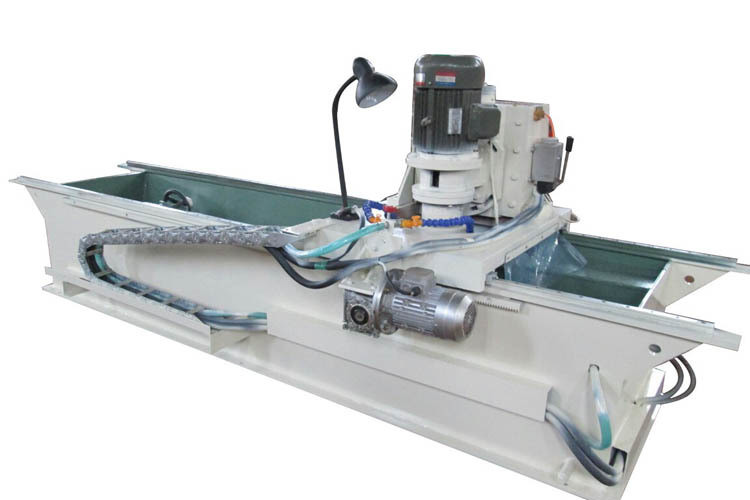

High Precision 1600 Model Straight Blade Sharpener For Knife And Tools

High Precision 1600 Model Straight Blade Sharpener For Knife And Tools

Sharpener Specification:

Type 1600 grinding machine is a multi-utility grinding machine. Self designed with Germanic technique. The machine is mainly used in grinding all sorts of knives. It is the necessary machine in woodwork, food, printing paper, plastic and veneer.It is special for cutting-paper machine.

The frame is jointed in the double iron plates in high quality. The advanced and reasonable frame can ensure the precision of the machine. There is an electromagnetic cupola in the machine body. There is a worm transmission on one end which can adjust the angle from 0 to 90 degree when the hand is revoled. On front side there is switch block which is used to adjust the working distance. And on the back side is Variable frequency speed regulating rack and pinion drive. Pump is fixed on the cover of the water tank, equipped with electric controlling box. The machine uses the engine drive.There is a gear clearance mechanism between the saddle and the motor. You can adjust it to be best. The main case is on the frame.There is a special motor for rising up and down, which is in the grinding-knives’ box. The special motor is special for grinding the knives. The machine is equipped with super electromagnetic suction cap. The angle from 0 to 90 degree is adjustable with a calibrating device. The working distance is adjustable in fixed range. Wet grinding is applied to the precise grinding of the angle of the knife with cup-shaped grinding wheel. Different grinding wheels can grind knives in different material . The special motor is special for grind (axis gap as adjustable). Auto-feed and hand-feed can be chosen in the course of working.

Main parameter of blade sharpening machine / Knife grinder / knife grinding machine knife sharpener machine:

Suitable for: High-precision vertical slicing floorboard factory, specialized large-scale processing factory, hardware accessory factory, board processing factory, printing plant...

Knife Grinding Machine knife grinder/ woodworking grinding machine Features:

Adopting the technology at home and abroad, this newly developed machine has reached the international level and has become a necessity for many knife users.

1. The working table is of electromagnetic chunk with strong magnetic power and lower consumption.
2. The spindle motor is professionally made for grinding knife, with high precision and easy maintenance.
3. The machine has a double tilting fillet to lock tight the electro-magnetic chunk, so the grinder is more stable.
4. The machine chooses rack driving, so the grinding head traveling is smoother.
5. The button is chosen from Siemens which has a reliable quality. It is easy to operate and has a long life span.
6. The switch and the contactor is choose from French Schneider electric components which are well known in the world. The quality is beyond all doubts.
7. The moving up and down of the grinding head is depended on the ball screw. The machine can use for a long time without the dropping of the knife. It is the no clearance transmission.
8. The movement of the grinding head is controlled by the inverter. Its speed is 0-20m/s. Its speed can be fitted for both accurate grinding and rough grinding.
