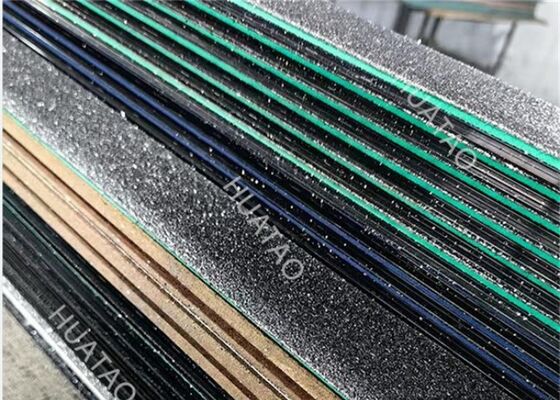

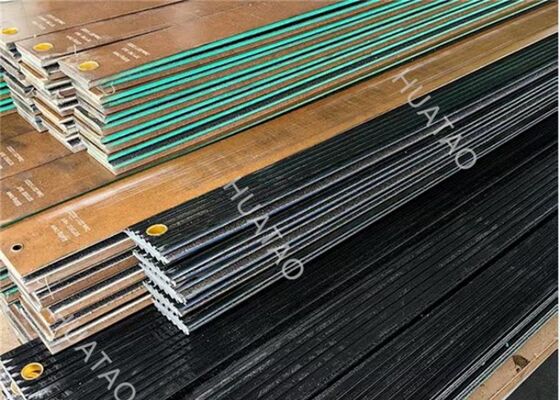

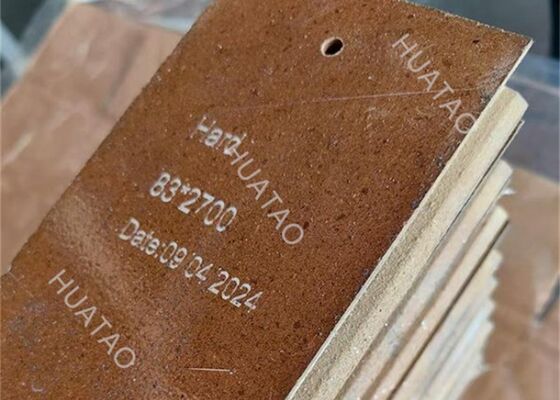

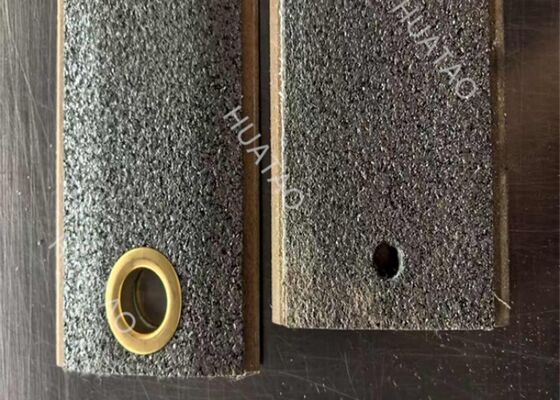

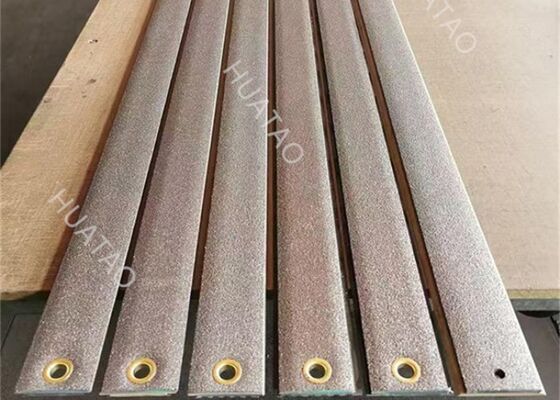

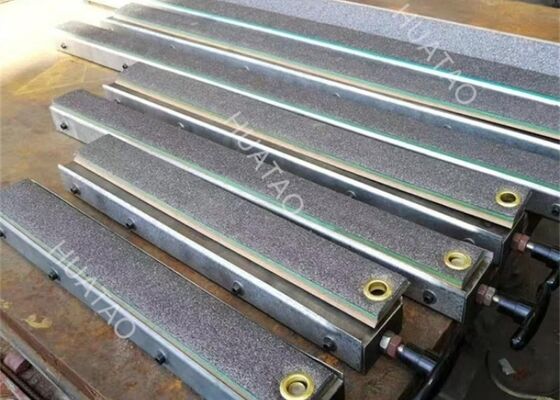

Black UHMWPE Anti Abrasion Slide Pad For Wood Panel Sanding Machine Conveying Support

Gambar besar : Black UHMWPE Anti Abrasion Slide Pad For Wood Panel Sanding Machine Conveying Support

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATAO
Sertifikasi:	CE
Nomor model:	HT-SP003

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	12 buah
Harga:	according to the size
Kemasan rincian:	Ekspor Kemasan Standar
Waktu pengiriman:	7-10 hari
Syarat-syarat pembayaran:	L/C,T/T
Menyediakan kemampuan:	30 buah Per Hari

Kontak

Detil Deskripsi produk

Nama Produk::	Bantalan Geser	Kata Kunci Inti：:	Bantalan geser, sander, suku cadang, tahan aus
Bahan mentah::	UHMWPE Kepadatan Tinggi	Warna & Ketebalan::	Hitam Tebal Standar 8mm
Kinerja Inti::	Tahan Benturan Anti Abrasi Gesekan Rendah	Ketahanan Suhu: ：:	Suhu Kerja Terus Menerus -20°C ~ 100°C
Fitur Bantalan Beban::	Geser Senyap Beban Berat	Peralatan yang Cocok::	Mesin Pengamplasan Berkelanjutan Papan Partikel MDF OSB
Menyoroti:	UHMWPE slide pad for wood panel , anti abrasion sanding machine pad , wood panel conveying support pad

High Wear Resistant UHMWPE Slide Pad for Wood Panel Wide Belt Sanding Machine Spare Parts

Introduction

In the complete manufacturing workflow of MDF, particle board and OSB, wide belt sanding is the core surface finishing procedure to guarantee flat, smooth panel surfaces. The slide pad serves as the critical sliding support component installed under the sanding shoe, providing uniform pressure for fiber boards during sanding, while eliminating friction scratch and board bouncing defects.

Under long-term uninterrupted industrial sanding operation, ordinary plastic slide pads bear continuous reciprocating friction, high heat generated by sanding belts, heavy compression load and impact from uneven wood slabs. Inferior low-density plastic pads suffer from fast surface abrasion, high friction coefficient, easy deformation under pressure and poor heat resistance. These defects will trigger uneven sanding marks, board surface scratches, frequent pad replacement and unplanned equipment shutdown, which greatly reduce finished panel surface quality and overall production efficiency of wood panel factories. Black UHMWPE Anti Abrasion Slide Pad For Wood Panel Sanding Machine Conveying Support

HUATAO independently developed slide pad model SD-001, tailor-made for pressure supporting and guiding stations of all mainstream wide belt sanders for wood-based panels. The product is integrally formed with virgin high-density UHMWPE PE1000 raw material, with self-lubricating molecular structure and impact-resistant formula. This sanding slide pad features ultra-low friction coefficient, outstanding abrasion resistance, stable dimensional performance and moderate temperature adaptability, which can completely resolve common sanding quality defects and frequent maintenance troubles caused by low-quality sliding pads.

Item	Specification
Product Model	SD-001 Black Standard Slide Pad
Main Material	Virgin High Density UHMWPE PE1000
Standard Thickness	8 mm
Color	Matte Solid Black
Core Performance	Ultra Low Friction, Anti Abrasion, Silent Sliding
Working Temperature	-20°C ~ 100°C Continuous Operation
Friction Coefficient	≤ 0.11 Self-lubricating Surface
Abrasion Loss	≤ 0.08 g/1000r
Impact Strength	≥ 20 kJ/m²
Custom Service	Full CNC Machining for Size, Hole, Outline
Matching Equipment	630-1600mm Wide Belt Sanders for MDF/Particle Board

Product Features:

Virgin UHMWPE Self-lubricating Molecular Structure
Adopting pure PE1000 ultra-high molecular weight polyethylene raw material, the slide pad owns natural self-lubricating property without extra oil lubrication. The smooth sliding surface greatly reduces friction resistance between sanding shoe and frame, lowering equipment operation load and power consumption.
Super Long Service Life With Excellent Abrasion Resistance
UHMWPE material owns abrasion resistance 7 times higher than carbon steel and 6 times higher than ordinary nylon. Under long-time reciprocating sliding friction of sanding equipment, the pad surface wears slowly, effectively extending replacement cycle and cutting spare parts procurement cost for factories.
High Toughness Anti-impact & Anti-compression Deformation
Compact cross-linking molecular structure brings strong impact resistance and compression resistance. Even when uneven wood slabs pass through the sanding station to generate instantaneous heavy impact, the slide pad will not crack, dent or permanently deform, maintaining consistent uniform sanding pressure on board surfaces all the time.
Silent Sliding Performance To Reduce Workshop Noise
The elastic buffer property of UHMWPE can absorb vibration generated during high-speed sanding reciprocation. Compared with metal or hard plastic sliding blocks, this slide pad greatly lowers running noise of sanding equipment, improving overall workshop production environment.
Stable Dimensional Stability Under Long Working Hours
Low thermal expansion rate and fixed forming craft control deformation rate to the minimum. Even under long-time heat accumulation from sanding belts, the slide pad keeps fixed size without warping or shrinking, avoiding sanding offset and uneven surface sanding marks on finished panels.
Moderate Wide Temperature Adaptability
Stably operate under continuous temperature from -20°C to 100°C, fully adapting to normal temperature and heat accumulation environment of wood panel sanding workshops, without performance softening or embrittlement failure.
Full Custom CNC Machining Support
We provide one-stop precision processing service including custom length, width, thickness, mounting hole position, arc chamfer and special-shaped cutting. The slide pad can perfectly fit segmented sanding shoes and integrated sanding units of all brands wide belt sanders.

Applications:

HUATAO UHMWPE slide pads are widely matched for the below sanding equipment and production sections:
·630/1000/1300/1600mm Full-automatic Wide Belt Sanding Production Lines
·MDF Calibration & Fine Sanding Machine Pressure Support Station
·Particle Board Surface Polishing Sanding Equipment Guide Parts
·OSB Oriented Strand Board Post-forming Sanding Shoe Sliding Components
Support full set wide belt sanding machines manufactured by mainstream international brands including Chialung, Felder, MOTIMAC and other woodworking equipment suppliers.

This UHMWPE slide pad is standard matched wear consumable for mass continuous wood panel sanding factories, especially suitable for production plants troubled by uneven sanding traces, fast pad wear and frequent equipment maintenance shutdown.

Product Advantages:

Virgin PE1000 UHMWPE raw material with natural self-lubrication
Ultra low friction coefficient to lower equipment operation load
7x higher abrasion resistance than ordinary nylon sliding blocks
High toughness anti impact anti compression deformation
Silent vibration absorption sliding to reduce workshop noise
Low thermal expansion stable dimension no warping
-20°C to 100°C wide continuous working temperature range
Full CNC custom machining size hole and outline available
Bolt fixed or adhesive backed two mounting options
Strict surface flatness inspection before bulk delivery
Stable fast lead time for large quantity factory orders
Professional one-to-one technical matching consultation service Black UHMWPE Anti Abrasion Slide Pad For Wood Panel Sanding Machine Conveying Support

Production Benefits:

Deploying HUATAO professional UHMWPE slide pad can bring multiple tangible economic and quality benefits to wood panel manufacturers:
Realize uniform stable sanding pressure to eliminate uneven sanding marks on finished boards
Completely avoid surface scratch and indentation defects caused by high-friction sliding blocks
Remarkably extend spare parts replacement cycle to cut consumable procurement cost
Reduce sanding equipment power consumption thanks to low friction sliding performance
Absorb operation vibration to lower workshop running noise level
Stable non-deformation running reduces sanding thickness adjustment frequency
Minimize production loss caused by frequent pad replacement and machine halt
Improve surface smoothness and finished yield rate of MDF particle board OSB panels
Lower manual maintenance labor cost for sanding equipment daily inspection
Boost continuous stable operation efficiency of the whole sanding production line

Why Choose HUATAO

As an integrated professional supplier of spare parts for wood-based panel sanding and continuous press production lines, HUATAO owns independent UHMWPE raw material forming and CNC precision machining workshops, with years of stable overseas bulk export experience and complete standardized multi-index quality control system.
Our comprehensive core service advantages cover:
Rich targeted manufacturing experience for wood sanding machine special sliding wear pads
Independent raw material formula screening for sanding high-friction working conditions
Full support for OEM and ODM custom size, hole position and special-shaped processing
Complete factory testing on friction coefficient, abrasion resistance and flatness before shipment
Direct factory supply price without intermediate markup to control spare parts procurement cost
Stable global delivery cycle for large batch export orders of sanding machine accessories
One-stop professional technical consultation service for model matching sanding equipment width
Timely remote after-sales guidance for pad installation and equipment pressure adjustment
