Trell-ex PS 305x305mm Steel Insert Screen Panel for Heavy Duty Mining

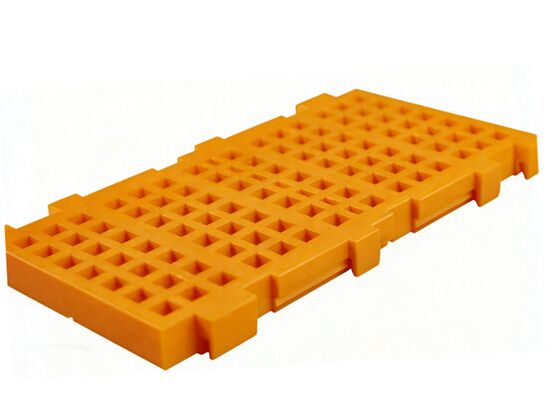

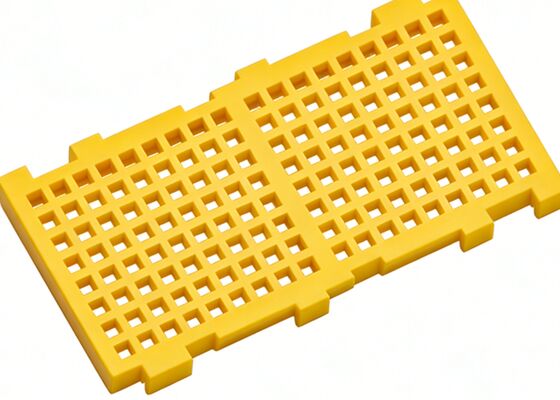

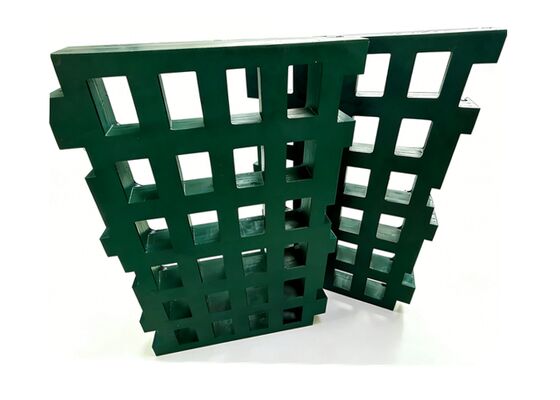

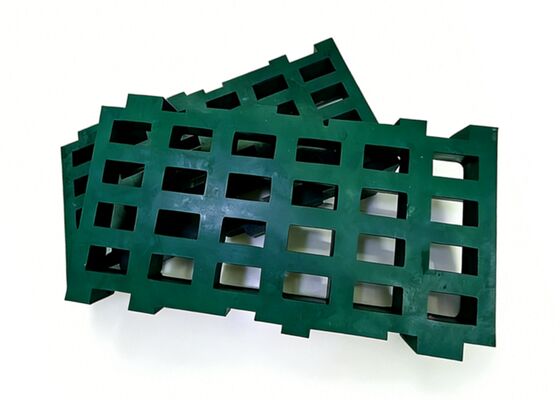

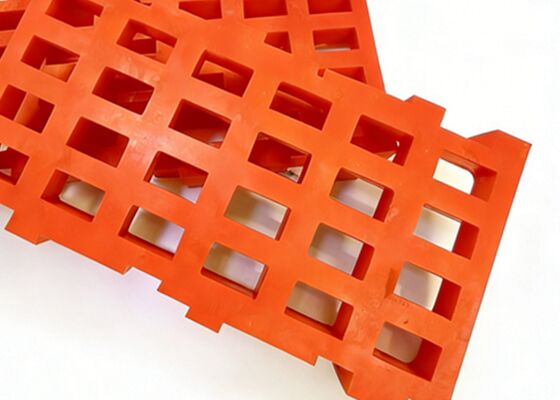

Gambar besar : Trell-ex PS 305x305mm Steel Insert Screen Panel for Heavy Duty Mining

Detail produk:

Tempat asal:	Cina
Nama merek:	Huatao
Sertifikasi:	ISO9001, CE
Nomor model:	Panel Layar PU
Dokumen:	2026-Huatao Catalogue of Mi...on.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	5 buah
Harga:	USD 35 - 45/Piece
Kemasan rincian:	Kemasan standar ekspor
Waktu pengiriman:	5-7 hari
Syarat-syarat pembayaran:	T/T,Western Union,L/C,D/A,D/P
Menyediakan kemampuan:	10.000 Potongan per Bulan

Kontak

Detil Deskripsi produk

Bahan:	Bahan poliuretan dan rangka baja tertanam	Ukuran aperture:	0,1 mm – 130 mm
jenis:	Seri Ws85,Ls	Ketebalan:	30mm, 40mm, 50mm
Spesifikasi:	OEM	Kapasitas Produksi:	10000 buah/bulan
Peningkatan Area Layar:	50% (Punggungan Stereoskopis)	Kekerasan:	65 - 91 Pantai A
Perbedaan Tekanan Maks:	2180kPa	Ukuran pakan maks:	30mm
Menyoroti:	Steel insert mining screen panel , Heavy duty polyurethane screen panel , 305x305mm mining screen panel

Trell-ex PS 305x305mm Steel Insert Screen Panel for Heavy Duty Mining

Product Overview

The Trell-ex PS conforms to the global 305x305mm (1'x1') modular standard, making it a versatile choice for existing screen machines. By combining unique flexible rubber or polyurethane compounds with robust steel inserts, these panels offer an unbeatable defense against blinding while extending wear life under extreme impact conditions.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
