Rotex Compatible Grommet Screen with 0.0014-0.0090 Inch Wire Diameter and 46%-76.4% Open Area in 304 Stainless Steel for Mining Separation

Gambar besar : Rotex Compatible Grommet Screen with 0.0014-0.0090 Inch Wire Diameter and 46%-76.4% Open Area in 304 Stainless Steel for Mining Separation

Detail produk:

Tempat asal:	Cina
Nama merek:	CHINA HUATAO
Sertifikasi:	ISO9001,CE,SGS etc.
Nomor model:	HT

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	USD 100-200 per pcs
Kemasan rincian:	Kotak Kayu atau Kotak Karton
Waktu pengiriman:	5-8 HARI KERJA
Syarat-syarat pembayaran:	L/C,T/T,Western Union,Paypal
Menyediakan kemampuan:	100PCS/BULAN

Kontak

Detil Deskripsi produk

Diameter Kawat:

0,0014-0,0090 inci

Menyoroti:

0.0014-0.0090 Inch Wire Diameter Grommet Screen

46%-76.4% Open Area Rotex Replacement Screen

Canvas Edge Wire Mesh Screen

Rotex Replacement Grommet Screen with 0.0014-0.0090 Inch Wire Diameter and 46%-76.4% Open Area for Mining Separation

Rotex Compatible Grommet Screen 304 Stainless Steel Canvas Edge Mining Separation For industries demanding both durability and precision, HUATAO Grommet Screens deliver unmatched performance. Designed to work flawlessly with Rotex® separators, these screens are built from high-quality stainless steel variants (304, 304L, 316, 316L), ensuring they hold up against corrosive substances and harsh chemicals—critical for mining, chemical, and even food processing sectors.

Key Features

Edge reinforcement options: black PU strips for industrial use, transparent FDA/EU-certified PU strips for food contact, or folded wire edges for high-temperature applications (80°C+)
Customizable mesh configurations with 14-230 mesh counts and wire diameters from 0.0014-0.0090 inch
Open areas ranging 46%-76.4% for optimal material separation
Pre-installed grommets for quick screen replacement and minimal downtime
Durable construction ensures extended service life and excellent long-term value

Technical Specifications

Parameter	Specification
Mesh Material	Stainless Steel 304, 304L, 316, 316L
Edge material	PU, canvas, silica gel reinforced strips
Mesh type	Woven mesh
Mesh count	14-230
Wire diameter	0.0014-0.0090 inch
Open area	46.0%-76.4%

Detailed Mesh Specifications

Item	Mesh Size	Wire Size (in.)	Microns	Open Area %
1	14	0.009	1580	76.4
2	16	0.009	1360	73.3
3	18	0.009	1180	70.2
41	230	0.0014	74	46

Edge Type Options

Black PU-Strip Grommet Screen

Transparent PU-Strip Grommet Screen

180° Folded Edge Grommet Screen

Production Process

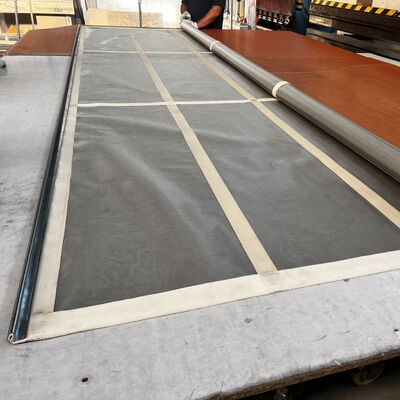

Grommet Screen production process

Packaging & Logistics

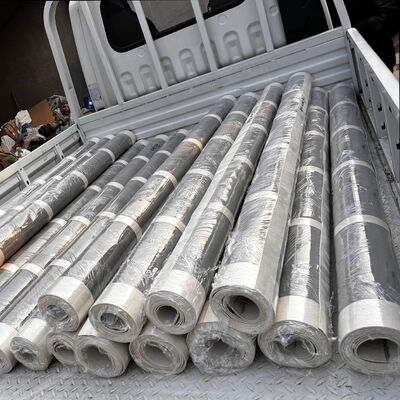

Wooden box package for secure shipping and handling.

Grommet Screen packaging example

Grommet Screen packaging example

Applications

Grommet Screen in use
