Stainless Steel Grommet Screen with 30% More Open Area for High Wear Resistance in Mining

Gambar besar : Stainless Steel Grommet Screen with 30% More Open Area for High Wear Resistance in Mining

Detail produk:

Tempat asal:	Cina
Nama merek:	CHINA HUATAO
Sertifikasi:	ISO9001,CE,SGS etc.
Nomor model:	HT

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	USD 100-200 per pcs
Kemasan rincian:	Kotak Kayu atau Kotak Karton
Waktu pengiriman:	5-8 HARI KERJA
Syarat-syarat pembayaran:	L/C,T/T,Western Union,Paypal
Menyediakan kemampuan:	100PCS/BULAN

Kontak

Detil Deskripsi produk

Bahan jaring:

Baja tahan karat 304, 304L, 316, 316L

Menyoroti:

Rectangular mesh grommet screen

High-capacity mining screen

Rotex replacement grommet screen

Stainless Steel Grommet Screen 30% More Open Area for Mining

Product Overview

High-Capacity Rectangular Mesh Grommet Screen with 30% More Open Area

HUATAO's grommet screens provide reliable replacement screens for Rotex® separators in mineral screening applications. These wire screens feature secure eyelet attachments for quick installation and tight fit. The mesh edges are reinforced with either heavy-duty PU strips or 180-degree folded edges with stainless steel grommets, ensuring durability in demanding mining environments.

Our rectangular mesh design offers up to 30% more open screening area than traditional meshes, increasing material throughput without compromising screen lifespan. Suitable for both coarse and fine mineral separation, these screens are available for all common cut sizes to accommodate diverse mining operations.

Compatible with various mineral processing machines including Megatex® screeners (with optional stainless steel hooks), our grommet screens combine easy installation with exceptional performance and longevity.

Key Parameters

Parameter	Specification
Mesh Material	Stainless Steel 304, 304L, 316, 316L
Edge material	PU, canvas, silica gel reinforced strips
Mesh type	Woven mesh
Mesh count	14-230
Wire diameter	0.0014-0.0090 inch
Open area	46.0%-76.4%

Detailed Specifications

Item	Mesh Size	Wire Size (in.)	Microns	Open Area %
1	14	0.009	1580	76.4
2	16	0.009	1360	73.3
3	18	0.009	1180	70.2
4	20	0.009	1040	67.2
5	22	0.0075	964	69.7
6	24	0.0075	868	67.2
7	26	0.0075	786	64.8
8	28	0.0075	716	62.4
9	30	0.0065	681	64.8
10	32	0.0065	630	62.7
11	34	0.0065	582	60.7
12	36	0.0065	541	58.7
13	38	0.0065	503	56.7
14	40	0.0065	470	54.8
15	42	0.0055	465	59.1
16	44	0.0055	437	57.5
17	46	0.0055	411	55.8
18	48	0.0055	388	54.2
19	50	0.0055	368	52.5
20	52	0.0055	348	51
21	54	0.0055	330	49.4
22	58	0.0045	323	54.6
23	60	0.0045	310	53.3
24	62	0.0045	295	51.7
25	64	0.0045	281

Edge Type Options

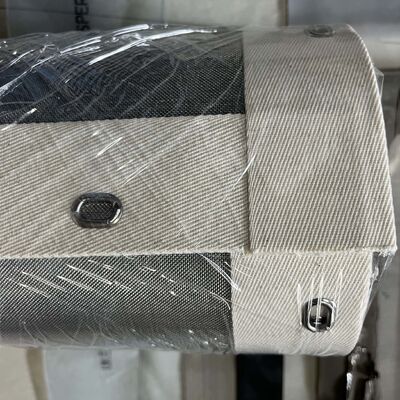

Black PU-Strip Grommet Screen

Transparent PU-Strip Grommet Screen

180° Folded Edge Grommet Screen

Production Process

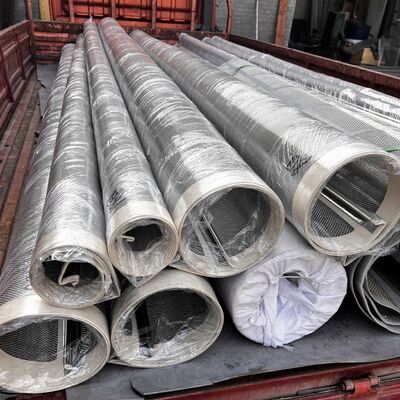

Packaging & Logistics

Wooden box package for secure shipping and handling.

Applications
