SS316 Grommet Screen with Folded Edges for Rotex 14-230 Mesh Industrial Wire Mesh Panel

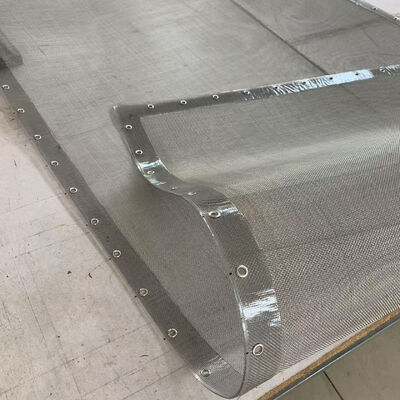

Gambar besar : SS316 Grommet Screen with Folded Edges for Rotex 14-230 Mesh Industrial Wire Mesh Panel

Detail produk:

Tempat asal:	Cina
Nama merek:	CHINA HUATAO
Sertifikasi:	ISO9001,CE,SGS etc.
Nomor model:	HT

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	USD 100-200 per pcs
Kemasan rincian:	Kotak Kayu atau Kotak Karton
Waktu pengiriman:	5-8 HARI KERJA
Syarat-syarat pembayaran:	L/C,T/T,Western Union,Paypal
Menyediakan kemampuan:	100PCS/BULAN

Kontak

Detil Deskripsi produk

Bahan jaring:

Baja tahan karat 304, 304L, 316, 316L

Menyoroti:

SS316 Rotex separator screen

folded edge grommet screen

Rotex replacement wire mesh

SS316 Grommet Screen with Folded Edges for Rotex 14-230 Mesh

HUATAO's SS316 Grommet Screen with Folded Edges provides reliable replacement screens for Rotex® separators in demanding mineral screening applications. These durable wire screens feature secure eyelet attachments for easy installation on existing frames.

Product Features

Reinforced with PU strips or 180-degree folded edges with stainless steel grommets
Available with round or oblong grommets for enhanced durability
Rectangular mesh design offers up to 30% larger open screening area
Increased throughput capacity without compromising screen lifespan
Suitable for both coarse ores and fine minerals processing
Compatible with various mineral processing machines
Optional stainless steel hooks for Megatex® screeners
Constructed from high-quality materials to withstand harsh mining environments

Key Specifications

Parameter	Specification
Mesh Material	Stainless Steel 304, 304L, 316, 316L
Edge Material	PU, canvas, silica gel reinforced strips
Mesh Type	Woven mesh
Mesh Count	14-230
Wire Diameter	0.0014-0.0090 inch
Open Area	46.0%-76.4%

Detailed Mesh Specifications

Item	Mesh Size	Wire Size (in.)	Microns	Open Area %
1	14	0.009	1580	76.4
2	16	0.009	1360	73.3
3	18	0.009	1180	70.2
4	20	0.009	1040	67.2
5	22	0.0075	964	69.7
6	24	0.0075	868	67.2
7	26	0.0075	786	64.8
8	28	0.0075	716	62.4
9	30	0.0065	681	64.8
10	32	0.0065	630	62.7
11	34	0.0065	582	60.7
12	36	0.0065	541	58.7
13	38	0.0065	503	56.7
14	40	0.0065	470	54.8
15	42	0.0055	465	59.1
16	44	0.0055	437	57.5
17	46	0.0055	411	55.8
18	48	0.0055	388	54.2
19	50	0.0055	368	52.5
20	52	0.0055	348	51
21	54	0.0055	330	49.4
22	58	0.0045	323	54.6
23	60	0.0045	310	53.3
24	62	0.0045	295	51.7
25	64	0.0045	281	50.7
26	70	0.0037	269	54.9
27	72	0.0037	259	53.8
28	74	0.0037	249	52.7
29	76	0.0037	241	51.7
30	78	0.0037	231	50.6
31	80	0.0037	224	49.6
32	84	0.0035	213	49.8
33	88	0.0035	201	47.9
34	90	0.0035	193	46.9
35	94	0.0035	180	45
36	105	0.003	165	-
