316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines

Gambar besar : 316L Stainless Steel Grommet Screen with 14-230 Mesh for Mineral Processing Machines

Detail produk:

Tempat asal:	Cina
Nama merek:	CHINA HUATAO
Sertifikasi:	ISO9001,CE,SGS etc.
Nomor model:	HT

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	USD 100-200 per pcs
Kemasan rincian:	Kotak Kayu atau Kotak Karton
Waktu pengiriman:	5-8 HARI KERJA
Syarat-syarat pembayaran:	L/C,T/T,Western Union,Paypal
Menyediakan kemampuan:	100PCS/BULAN

Kontak

Detil Deskripsi produk

Bahan jaring:

Baja tahan karat 304, 304L, 316, 316L

Menyoroti:

316L stainless steel grommet screen

Rotex replacement screen for mineral processing

mineral processing machine screen

316L Stainless Steel Grommet Screen 14-230 Mesh for Mineral Processing

Product Overview

316L Stainless Steel Grommet Screen for Mineral Processing Machines

Acid-Resistant 316L Stainless Steel Grommet Screen for Mineral Processing Machines

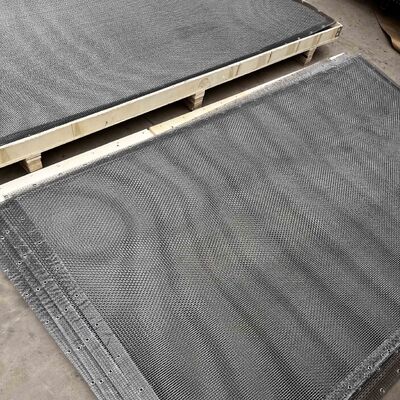

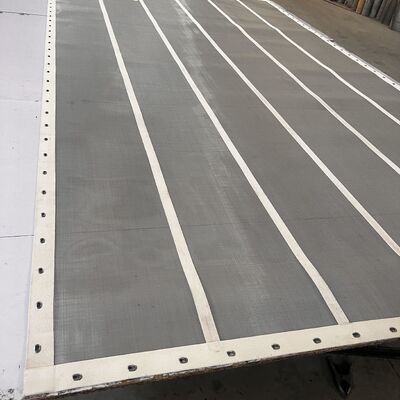

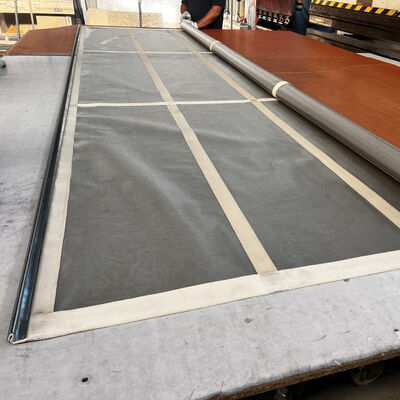

HUATAO's grommet screens are precision-engineered replacement screens for Rotex® separators and other mineral screening equipment. These wire screens feature reinforced edges with either heavy-duty PU strips or 180-degree folded mesh, secured with durable stainless steel grommets for easy installation and long service life.

Our rectangular mesh design provides up to 30% larger open screening area compared to standard options, increasing processing capacity without compromising screen durability. Available for all common cut sizes, these screens are ideal for both coarse and fine mineral separations.

Compatible with mineral processing machines of all types and sizes, including Megatex® screeners (with optional stainless steel hooks for secure fitting). The high-grade stainless steel grommets resist wear and corrosion in demanding mining environments.

Key Parameters

Parameter	Specification
Mesh Material	Stainless Steel 304, 304L, 316, 316L
Edge material	PU, canvas, silica gel reinforced strips
Mesh type	Woven mesh
Mesh count	14-230
Wire diameter	0.0014-0.0090 inch
Open area	46.0%-76.4%

Detailed Specifications

Item	Mesh Size	Wire Size (in.)	Microns	Open Area %
1	14	0.009	1580	76.4
2	16	0.009	1360	73.3
3	18	0.009	1180	70.2
4	20	0.009	1040	67.2
5	22	0.0075	964	69.7
6	24	0.0075	868	67.2
7	26	0.0075	786	64.8
8	28	0.0075	716	62.4
9	30	0.0065	681	64.8
10	32	0.0065	630	62.7
