304 Stainless Steel Grommet Screen with 14-230 Mesh Count for Rotex Separators

Gambar besar : 304 Stainless Steel Grommet Screen with 14-230 Mesh Count for Rotex Separators

Detail produk:

Tempat asal:	Cina
Nama merek:	CHINA HUATAO
Sertifikasi:	ISO9001,CE,SGS etc.
Nomor model:	HT

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	USD 100-200 per pcs
Kemasan rincian:	Kotak Kayu atau Kotak Karton
Waktu pengiriman:	5-8 HARI KERJA
Syarat-syarat pembayaran:	L/C,T/T,Western Union,Paypal
Menyediakan kemampuan:	100PCS/BULAN

Kontak

Detil Deskripsi produk

Bahan jaring:

Baja tahan karat 304, 304L, 316, 316L

Menyoroti:

304 stainless steel Rotex screen

14-230 mesh separator screen

Rotex replacement grommet screen

304 Stainless Steel Grommet Screen 14-230 Mesh for Rotex Separators

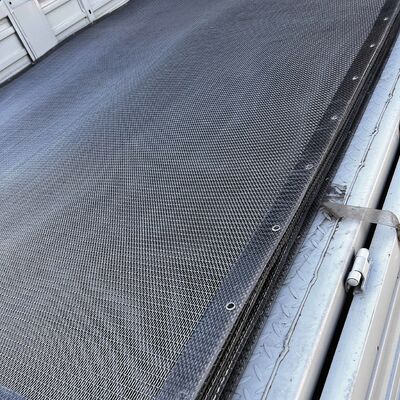

High-tensile 304 stainless steel grommet screens with 14-230 mesh count designed specifically for Rotex separators in mineral screening applications. HUATAO's replacement screens feature eyelets for seamless attachment to existing frames, ensuring secure mesh placement during operation.

Product Features

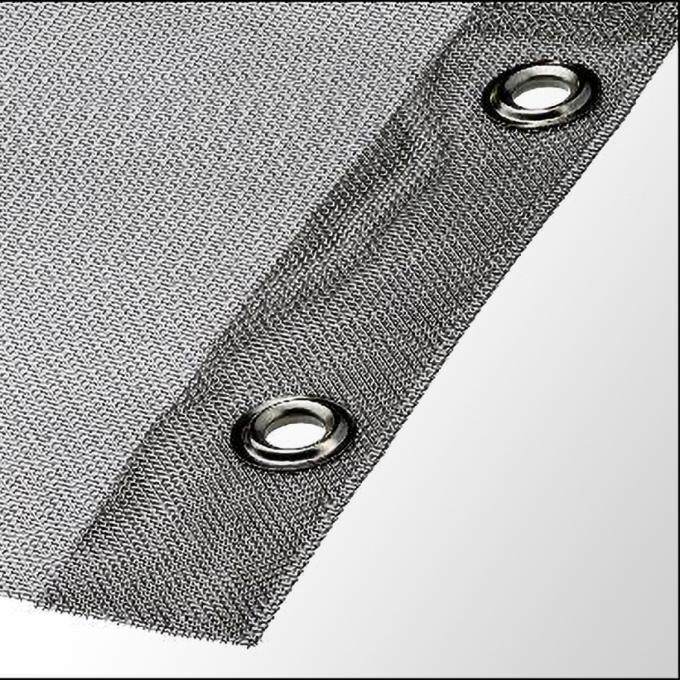

Edge reinforcement with PU strips or 180-degree folded wire mesh
Durable stainless steel grommets for superior corrosion resistance
Rectangular mesh design increases open screening area by up to 30%
Enhanced material handling capacity without compromising service life
Suitable for both coarse ores and fine minerals
Compatible with various mineral processing equipment

Key Parameters

Parameter	Specification
Mesh Material	Stainless Steel 304, 304L, 316, 316L

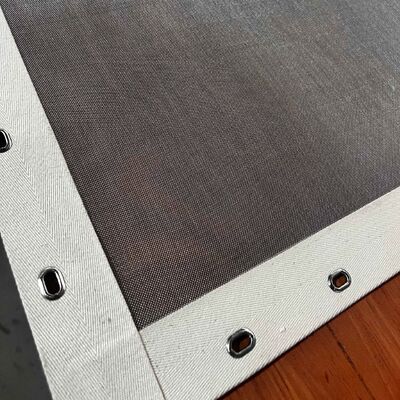

Edge Material	Generally reinforced strips made of PU, canvas, silica gel, etc.
Mesh Type	Woven mesh
Mesh Count	14-230
Wire Diameter	0.0014-0.0090 inch
Open Area	46.0%-76.4%

Detailed Specifications

Item	Mesh Size	Wire Size (in.)	Microns	Open Area %
1	14	0.009	1580	76.4
2	16	0.009	1360	73.3
3	18	0.009	1180	70.2
4	20	0.009	1040	67.2
5	22	0.0075	964	69.7
6	24	0.0075	868	67.2
7	26	0.0075	786	64.8
8	28	0.0075	716	62.4
9	30	0.0065	681	64.8
10	32	0.0065	630	62.7
11	34	0.0065	582	60.7
12	36	0.0065	541	58.7
13	38	0.0065	503	56.7
14	40	0.0065	470	54.8
15	42	0.0055	465	59.1
16	44	0.0055	437	57.5
17	46	0.0055	411	55.8
18	48	0.0055	388	54.2
19	50	0.0055	368	52.5
20	52	0.0055	348	51
21	54	0.0055	330	49.4
22	58	0.0045	323	54.6
23	60	0.0045	310	53.3
24	62	0.0045	295	51.7
25	64	0.0045	281	50.7
26	70	0.0037	269	54.9
27	72	0.0037	259	53.8
28	74		249	52.7
29	76	0.0037	241	51.7
30	78	0.0037	231	50.6
31	80	0.0037	224	49.6
32	84	0.0035	213	49.8
33	88	0.0035	201	47.9
34	90	0.0035	193	46.9
35	94		180	45
36	105	0.003	165	46.9
37	120	0.0026	147	48.8
38	145	0.0022	119	46.4
39	165	0.0019	107	47.1
40	200	0.0016	86	46.2
41	230	0.0014	74	46
