Polyurethane Flip-Flop Screen Panel with 8mm Holes for Wet Clay Screening and Self-Cleaning Action

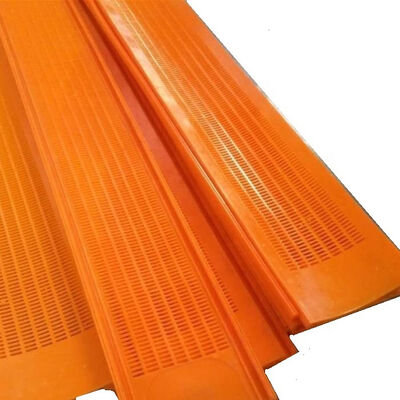

Gambar besar : Polyurethane Flip-Flop Screen Panel with 8mm Holes for Wet Clay Screening and Self-Cleaning Action

Detail produk:

Tempat asal:	Cina
Nama merek:	CHINA HUATAO
Sertifikasi:	ISO9001,CE,SGS etc.
Nomor model:	HT

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	USD 20-50 per pcs
Kemasan rincian:	Kotak Kayu atau Kotak Karton
Waktu pengiriman:	5-8 HARI KERJA
Syarat-syarat pembayaran:	L/C,T/T,Western Union,Paypal
Menyediakan kemampuan:	100PCS/BULAN

Kontak

Detil Deskripsi produk

Nama Produk:	Panel Layar Flip-Flop 8mm Lubang 7mm Ketebalan yang Digunakan untuk Pemutaran Tanah Liat Basah	Kata Kunci:	Panel Layar PU, tikar layar flip-flop, tikar layar ketegangan
Ketebalan:	5-12mm	Lebar:	300mm-350mm
Panjang:	1m-3.5m	Jenis lubang:	Bundar, persegi, persegi panjang dll
Bahan:	Poliuretan (PU)	Warna:	Oranye, Merah, Hijau, Kuning
Aplikasi:	Pemutaran Tambang‌	Paket:	karton atau kotak kayu
Menyoroti:	Wet Clay Screening Polyurethane Screen Panel , Self-Cleaning Flip-Flop Screen Panel , 8mm Holes Tension Screen Mat

Flip-Flop Screen Panel 8mm Holes 7mm Thickness for Wet Clay Screening

Polyurethane flip-flop screen panels excel at screening challenging materials—wet, sticky, or dry—thanks to their unique motion. The flip-flop action keeps surfaces clear of debris, preventing blinding and maintaining high efficiency. Made from durable polyurethane, they resist abrasion from ores and sand, lasting longer than traditional wire screens.

Ideal for vibratory screens in mining and construction, they can be customized by hardness, thickness, or aperture size. Installation is simple with bolt-free clamping, and their self-cleaning design reduces maintenance. They also cut noise compared to metal screens, making workplaces safer.

Key Features & Benefits

Excels at screening challenging materials—wet, sticky, or dry—thanks to unique flip-flop motion
Prevents blinding and maintains high efficiency with self-cleaning action
Durable polyurethane construction resists abrasion from ores and sand
Longer lifespan than traditional wire screens
Simple bolt-free clamping installation
Reduces noise compared to metal screens for safer workplaces
Customizable by hardness, thickness, or aperture size

Technical Specifications

Feature	Details
Panel Length	1m - 3.5m
Panel Width	300mm - 350mm
Panel Thickness	Custom designed
Efficiency	Self-cleaning, anti-clogging, 30% energy saving
Customization	Aperture sizes (3-32mm), shapes, modular compatibility
Aperture Shape	Square, Rectangle, Slot, Circular
Color	Orange, Red, Green, Yellow
Raw Material	Polyurethane (PU)
