1.25m Rubber Screen Panel 6mm Thickness for Wet Coal Screening

Gambar besar : 1.25m Rubber Screen Panel 6mm Thickness for Wet Coal Screening

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATAO
Sertifikasi:	ISO9001,CE,SGS etc.
Nomor model:	HTR001

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	10-300 USD per piece
Kemasan rincian:	kotak kayu
Waktu pengiriman:	7-10 Dyays
Syarat-syarat pembayaran:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan:	3000 PC per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	1,25m panjang tidak terbatas pada 6mm ketebalan layar karet impor digunakan untuk penyaringan batuba	Kata kunci:	Panel layar karet, panel layar bergetar
Bahan:	Karet Wear Tinggi + Hook	Jenis:	Anti -Blocking Screen Mesh
Ketebalan:	6/8/10/12/14/16mm	Jenis lubang:	Persegi, persegi panjang, bulat oval, bulat dll.
Ukuran:	sebagai permintaan klien	Aplikasi:	Penyaringan\pemisahan\penyortiran\pengayakan
Menyoroti:	1.25m rubber screen panel , 6mm thick rubber screen , wet coal screening panel

1.25m Rubber Screen Panel 6mm Thickness for Wet Coal Screening

Premium Imported Rubber Screen for Wet Coal Screening

Our 1.25m length rubber screen panels with 6mm thickness are manufactured from high-quality imported Thai rubber, offering exceptional durability for wet coal screening applications. These composite rubber screens combine superior wear resistance with excellent stability, suitable for all types of vibrating screens in both dry and wet conditions.

Key Features & Benefits

5-10x longer lifespan than traditional metal screens
Over 2x more durable than polyurethane alternatives
Dual-layer construction: red (softer, wear-resistant) + black (stiffer)
Available in standard widths of 1m/1.25m with unlimited length
Easy hook installation system
Standard 6mm thickness (8mm custom option available)
Customizable apertures from 3mm minimum (4-12mm most common)
Self-cleaning design reduces clogging and maintenance
Superior material separation efficiency

Technical Specifications

Feature	Specification
Material	Imported Thai Rubber
Installation Type	Hook System
Available Thickness	6/8/10/12/14/16mm (customizable)
Hole Size Options	Square, rectangle, oval, round
Standard Size	1.25m width (custom lengths available)
Color	Red-Black combination
Application	Screening, separation, sorting, sieving

Product Images

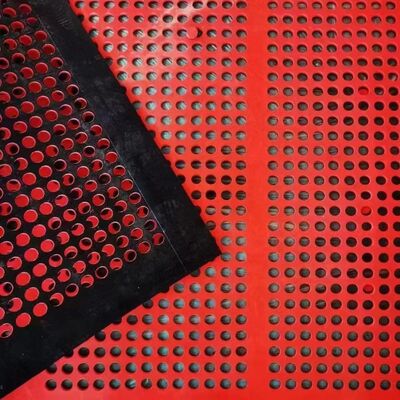

Front Face (Red Surface)

Black Face (Stiff Backing Layer)

Working Process

Packaging & Logistics

Wooden Box Packaging

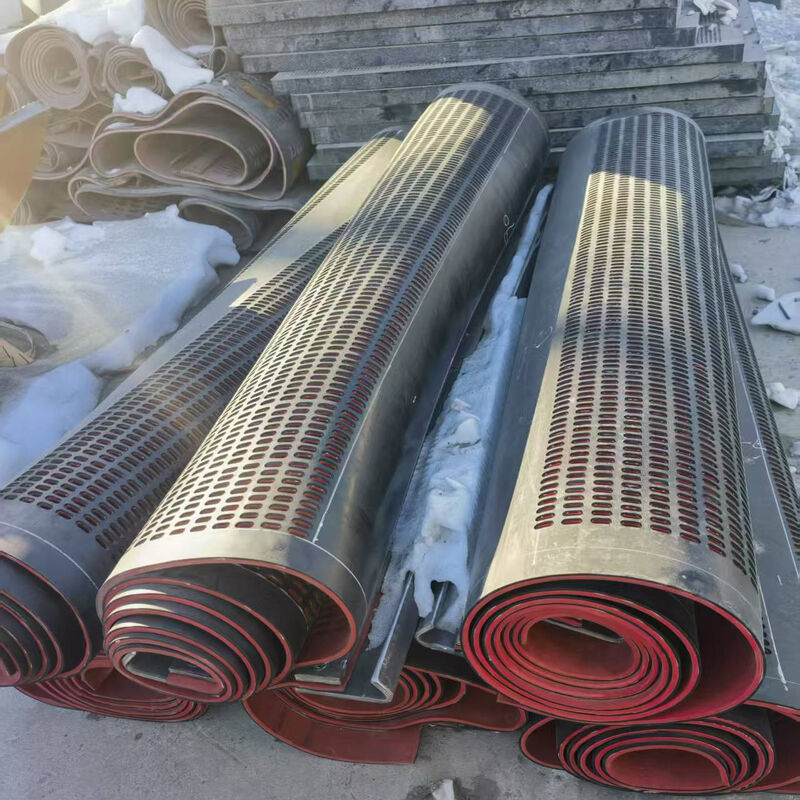

Ready for Shipment

Why Choose HUATAO?

Our engineering team customizes rubber screens to match specific material characteristics, with ISO 14001-certified production. Standard configurations ship within 25 days, with expedited options available. Our rigorous quality control exceeds industry standards, ensuring reliable performance in your processing plant.

Advantages of Rubber Vibrating Screen Panel
