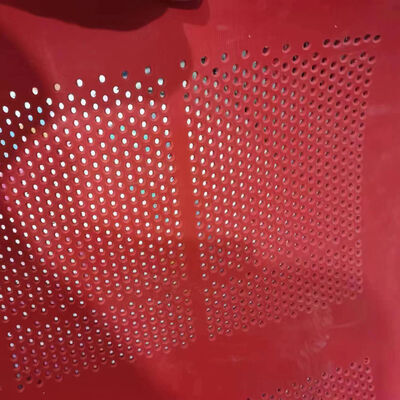

1.25m Self-Cleaning Rubber Panel for Vibrating Screens 6-16mm Thickness

Gambar besar : 1.25m Self-Cleaning Rubber Panel for Vibrating Screens 6-16mm Thickness

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATAO
Sertifikasi:	ISO9001,CE,SGS etc.
Nomor model:	HTR001

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	10-300 USD per piece
Kemasan rincian:	kotak kayu
Waktu pengiriman:	7-10 Dyays
Syarat-syarat pembayaran:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan:	3000 PC per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Lebar 1,25 m Bagian merah lembut/hitam keras Panel karet pembersih sendiri untuk layar yang bergetar	Kata kunci:	Panel layar karet, panel layar bergetar
Bahan:	Karet Wear Tinggi + Hook	Jenis:	Anti -Blocking Screen Mesh
Ketebalan:	6/8/10/12/14/16mm	Jenis lubang:	Persegi, persegi panjang, bulat oval, bulat dll.
Ukuran:	sebagai permintaan klien	Aplikasi:	Penyaringan\pemisahan\penyortiran\pengayakan
Menyoroti:	1.25m rubber screen panel , self-cleaning vibrating screen panel , red soft black hard rubber panel

1.25m Self-Cleaning Rubber Panel for Vibrating Screens Red Soft Black Hard

1.25m Width Red Soft/Black Hard Sections Self-Cleaning Rubber Panel for Vibrating Screens

These rubber self-cleaning screen mats, crafted from Thai imported rubber, offer unmatched durability for screening operations. The composite rubber structure enhances wear resistance and stability, making them compatible with all vibrating screens—suitable for both dry and wet screening. They combine the high throughput of metal meshes with better durability than polyurethane panels, as confirmed by users: 5-10 times longer than metal and over 2x longer than polyurethane.

Key Features & Benefits

Exceptional dry screening results with more precise separation than traditional screens
Minimizes clogging and extends service life
Composite structure: red section (softer, more wear-resistant) and black section (stiffer)
Available in 1m and 1.25m widths (unlimited length)
Easy hook installation system
Thickness options: 6mm (standard) or 8mm (custom)
Aperture sizes from 3mm (minimum) to 4-12mm (common)
Standard round holes with customizable rectangular holes

Specifications

Feature	Specification
Material	Rubber
Installation type	Hook
Thickness	6/8/10/12/14/16mm (customizable)
Hole Size	Square, rectangle, oval round, Round etc.
Size	As client request
Color	Red-Black color
Application	Screening, separation, sorting, sieving

Why Choose HUATAO?

HUATAO's engineering team customizes Rubber screens for specific material characteristics, with ISO 14001-certified production. Standard configurations ship in 25 days, with expedited options available. Our quality control exceeds industry standards, ensuring reliable performance in your processing plant.

Product Images

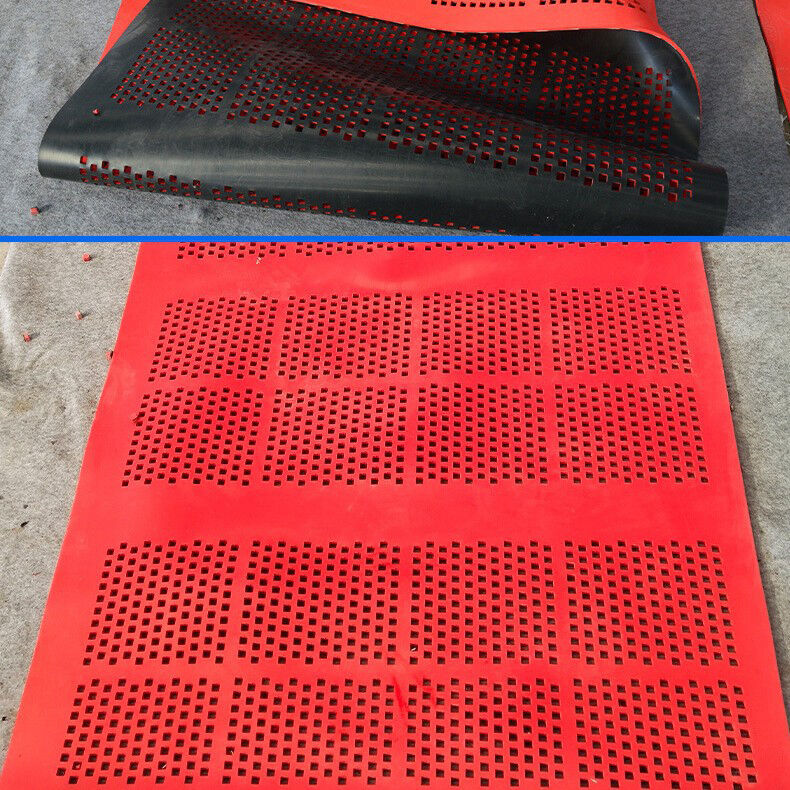

Front Face

Black Face

Working Process

Packaging & Logistics

Wooden box package.

Product Advantages
