5mm PU Screen Panel 8.0mm Mesh for Gravel with Quick-Clamp

Gambar besar : 5mm PU Screen Panel 8.0mm Mesh for Gravel with Quick-Clamp

Detail produk:

Tempat asal:	Cina
Nama merek:	CHINA HUATAO
Sertifikasi:	ISO9001,CE,SGS etc.
Nomor model:	HT

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	USD 200-1000 per pcs
Kemasan rincian:	Kotak Kayu atau Kotak Karton
Waktu pengiriman:	5-8 HARI KERJA
Syarat-syarat pembayaran:	L/C,T/T,Western Union,Paypal
Menyediakan kemampuan:	100PCS/BULAN

Kontak

Detil Deskripsi produk

Nama Produk:	Panel Layar PU 5mm PU 8.0mm Mesh untuk kerikil dengan desain penjepit cepat	Kata Kunci:	layar, Jaring Halus, layar bergetar, layar uretan
Ukuran:	1040mm x 700mm‌ atau OEM	Seumur hidup:	6-12 Bulan
Ukuran aperture:	0.045mm‌ ~ 8.0mm	Ketebalan:	5mm
Warna:	Oranye atau merah atau sebagai permintaan Anda	Aplikasi:	Skrining halus‌, pemrosesan pasir silika, besi
Daya tahan:	Ketahanan Aus yang Tinggi‌	Paket:	karton atau kotak kayu
Menyoroti:	5mm PU gravel screen panel , 8.0mm mesh polyurethane screen , quick-clamp PU screen for gravel

5mm PU Screen Panel 8.0mm Mesh for Gravel with Quick-Clamp

High-Performance Polyurethane Screen Panel

5mm thickness PU screen panel with 8.0mm mesh for gravel applications features a quick-clamp design for easy installation. This high-frequency PU fine mesh excels in silica sand processing, capturing particles from 0.045-1.0mm with its precisely engineered 35-40% open area that balances throughput with precision.

Key Features

High-density polyurethane construction (1.25g/cm³) for uniform aperture sizing
Optimized for high-speed vibrating screens in mining and quarry applications
8x longer lifespan than metal screens in continuous use
Steel-encapsulated edges prevent warping under vibration
Low-maintenance design reduces labor costs and downtime
Compatible with all high-frequency vibrating machines

Technical Specifications

Specification	Value
Material	Polyurethane
Aperture Size	0.045-8.0mm
Dimension Size	1040*700mm (standard or OEM sizes available)
Color	Red or Orange
Durability	High Wear-Resistant
Application	Mining & Quarry
Wear Resistance	3-8 times longer life span than conventional screens

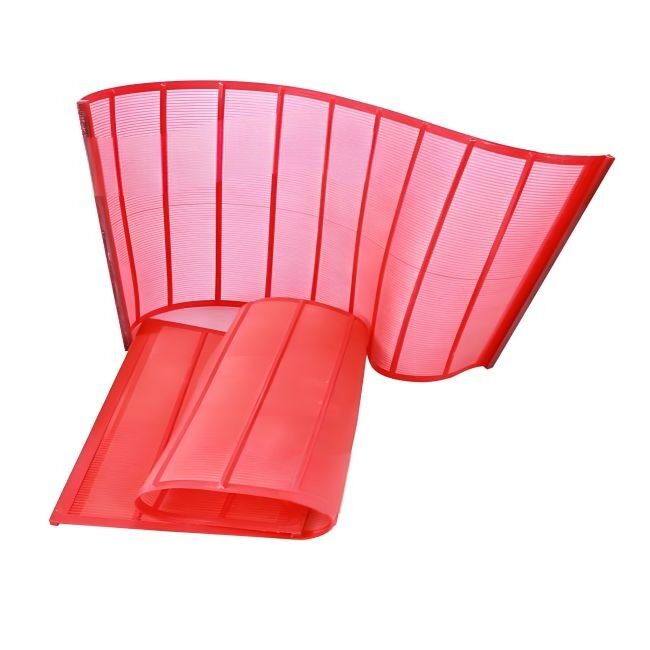

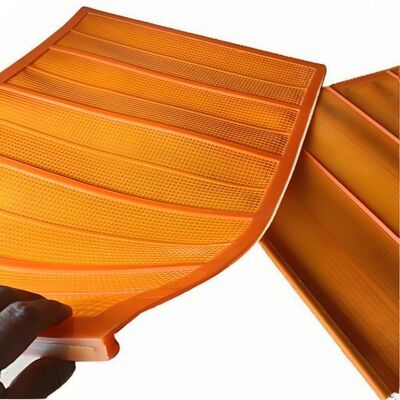

Product Images

Manufacturing Process

Our high-performance urethane screen panels undergo rigorous production processes to ensure precision and durability:

1. Material Preparation

High-grade polyurethane raw materials with UV stabilizers and anti-aging agents are selected for optimal abrasion resistance and elasticity.

2. Mold Design & Fabrication

Precision CNC-machined stainless steel molds with mirror-finished surfaces ensure dimensional accuracy for aperture geometries.

3. Casting & Curing

Vacuum-degassed polyurethane is poured into preheated molds and cured at 80-120°C for uniform density and structural integrity.

4. Demolding & Trimming

Precision laser trimming removes excess flash while edge sealing prevents delamination during operation.

5. Quality Control

Each panel undergoes laser scanning for aperture verification, simulated vibration testing, and material certification per ISO 9001 standards.
